opp 的设置

  • 2020-06-12
  • Admin

现象，所有打印请求无法运行

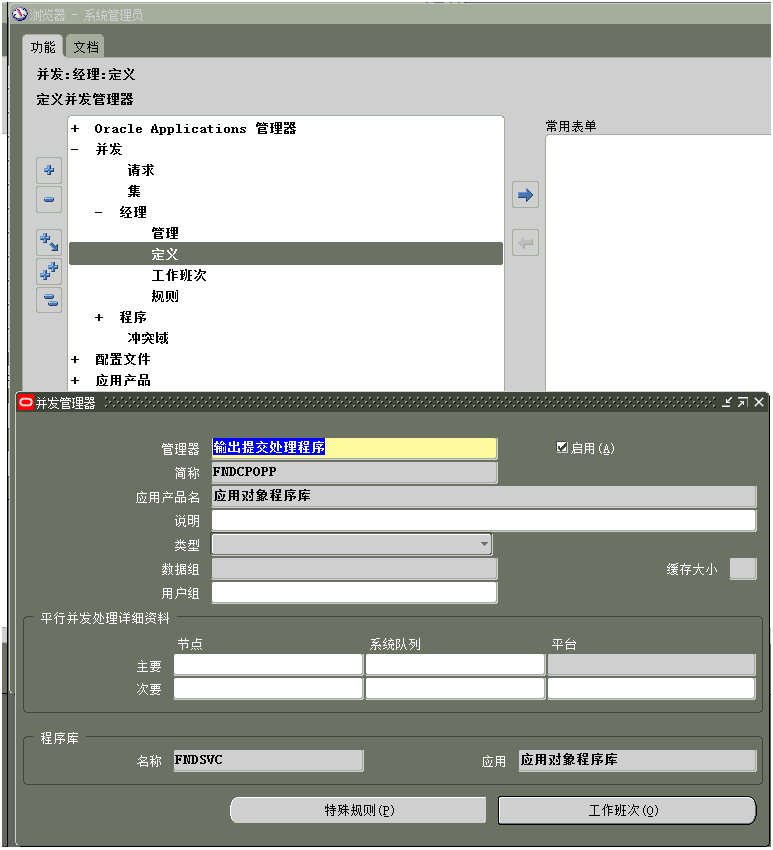

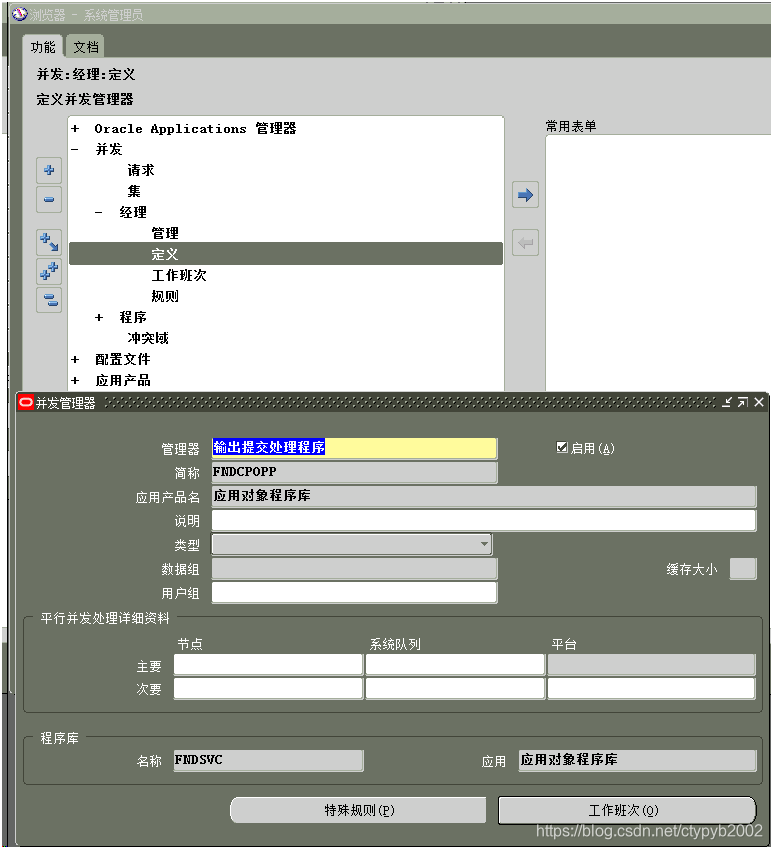

在这里插入图片描述

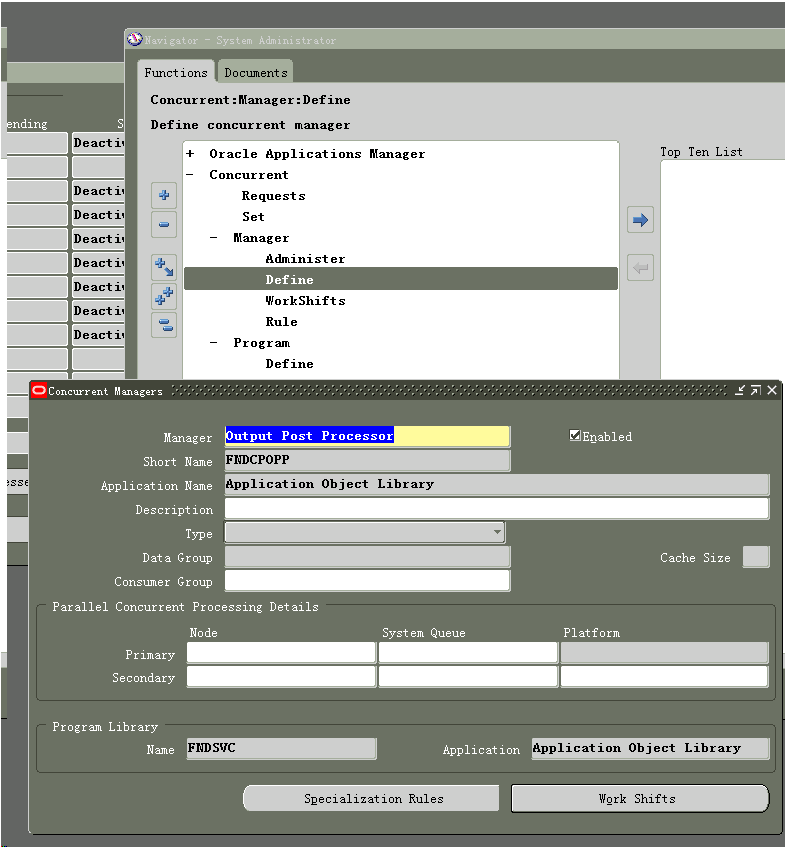

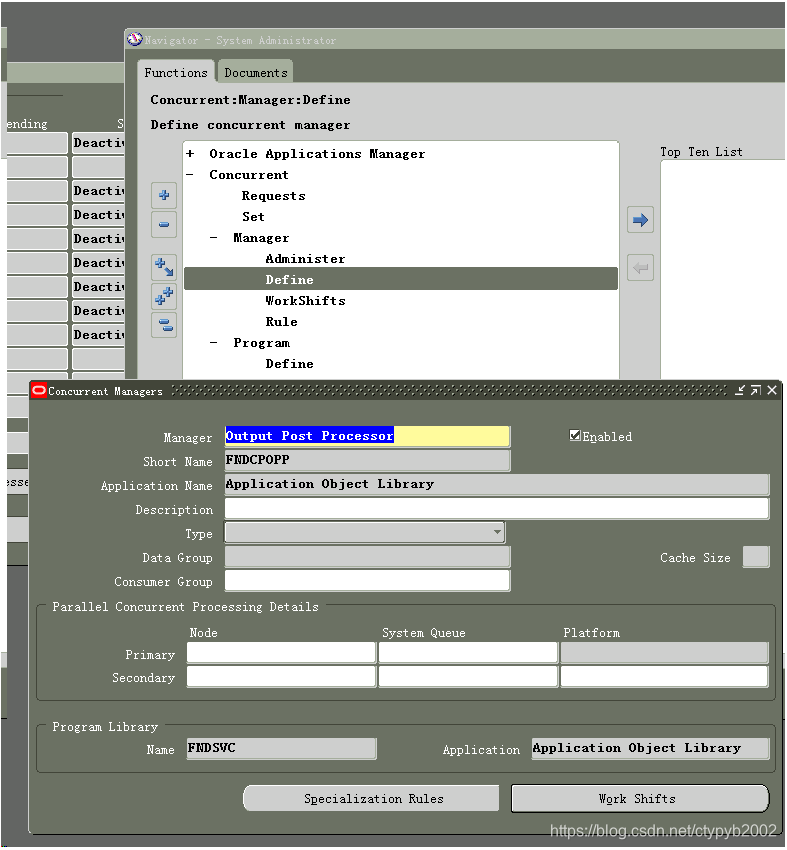

在这里插入图片描述

输出提交处理程序

FNDCPOPP

$ ps -fu applprod| grep -i opp



applprod 10505 28012  6 08:53 ?        00:03:20 /ebsfs/EBSPROD/apps/tech_st/10.1.3/appsutil/jdk/bin/java

-DCLIENT_PROCESSID=10505

-server -Xmx384m

        -XX:NewRatio=2

        -XX:+UseSerialGC

        -Doracle.apps.fnd.common.Pool.leak.mode=stderr:off

        -verbose:gc

        -mx1024m

        -Ddbcfile=/ebsfs/EBSPROD/inst/apps/EBSPROD_erp/appl/fnd/12.0.0/secure/EBSPROD.dbc

        -Dcpid=146415

        -Dconc_queue_id=6269

        -Dqueue_appl_id=0

        -Dlogfile=/ebsfs/EBSPROD/inst/apps/EBSPROD_erp/logs/appl/conc/log/FNDOPP146415.txt

        -DLONG_RUNNING_JVM=true

        -DOVERRIDE_DBC=true

        -DFND_JDBC_BUFFER_MIN=1

        -DFND_JDBC_BUFFER_MAX=2

        oracle.apps.fnd.cp.gsf.GSMServiceController


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40

该OPP的父进程是 并发管理器进程

applprod 28012 1 0 May14 ? 00:00:00 FNDSM

日志写在如下文件

Dlogfile=/ebsfs/EBSPROD/inst/apps/EBSPROD_erp/logs/appl/conc/log/FNDOPP146415.txt

[applprod@erp scripts]$ ls -l /ebsfs/EBSPROD/inst/apps/EBSPROD_erp/logs/appl/conc/log/ | grep -i opp

-rw-r--r-- 1 applprod appl    36231 May 15 08:50 FNDOPP146364.txt

-rw-r--r-- 1 applprod appl    45992 May 15 09:46 FNDOPP146415.txt



[5/15/15 8:19:31 AM] [146364:RT1431956]

Template code: HSSTCREP_ALL

Template app:  HSS

Language:      zh

Territory:     CN

Output type:   EXCEL

Exception in thread "Cache Heap Tracker" java.lang.OutOfMemoryError: Java heap space

  at java.util.Hashtable.getEnumeration(Hashtable.java:544)

  at java.util.Hashtable.keys(Hashtable.java:229)

  at oracle.apps.jtf.cache.ArchitectureWrapper.checkIfThreadsAlive(ArchitectureWrapper.java:116)

  at oracle.apps.jtf.cache.ArchitectureWrapper.cleanAll(ArchitectureWrapper.java:136)

  at oracle.apps.jtf.cache.CacheWorkerThread.heapTracker(CacheWorkerThread.java:334)

  at oracle.apps.jtf.cache.CacheWorkerThread.run(CacheWorkerThread.java:411)

[5/15/15 8:21:45 AM] [146364:RT1431956] Output file was found but is zero sized - Deleted

[5/15/15 8:21:45 AM] [UNEXPECTED] [146364:RT1431956] java.lang.reflect.InvocationTargetException

  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)

  at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)

  at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)

  at java.lang.reflect.Method.invoke(Method.java:597)

  at oracle.apps.xdo.common.xml.XSLT10gR1.invokeParse(XSLT10gR1.java:570)

  at oracle.apps.xdo.common.xml.XSLT10gR1.transform(XSLT10gR1.java:235)

     at oracle.apps.xdo.common.xml.XSLTWrapper.transform(XSLTWrapper.java:182)

     at oracle.apps.xdo.template.fo.util.FOUtility.generateFO(FOUtility.java:1044)

     at oracle.apps.xdo.template.fo.util.FOUtility.generateFO(FOUtility.java:997)

     at oracle.apps.xdo.template.fo.util.FOUtility.generateFO(FOUtility.java:212)

     at oracle.apps.xdo.template.FOProcessor.createFO(FOProcessor.java:1665)

     at oracle.apps.xdo.template.FOProcessor.generate(FOProcessor.java:975)

     at oracle.apps.xdo.oa.schema.server.TemplateHelper.runProcessTemplate(TemplateHelper.java:5936)

     at oracle.apps.xdo.oa.schema.server.TemplateHelper.processTemplate(TemplateHelper.java:3459)

     at oracle.apps.xdo.oa.schema.server.TemplateHelper.processTemplate(TemplateHelper.java:3548)

     at oracle.apps.fnd.cp.opp.XMLPublisherProcessor.process(XMLPublisherProcessor.java:302)

     at oracle.apps.fnd.cp.opp.OPPRequestThread.run(OPPRequestThread.java:176)

Caused by: java.lang.OutOfMemoryError: Java heap space

     at oracle.xdo.parser.v2.XMLText.addText(XMLText.java:357)

     at oracle.xdo.parser.v2.XMLDocument.createTextNode(XMLDocument.java:736)

     at oracle.xdo.parser.v2.DocumentBuilder.characters(DocumentBuilder.java:553)

     at oracle.xdo.parser.v2.NonValidatingParser.reportCharacters(NonValidatingParser.java:1680)

     at oracle.xdo.parser.v2.NonValidatingParser.parseText(NonValidatingParser.java:1391)

     at oracle.xdo.parser.v2.NonValidatingParser.parseElement(NonValidatingParser.java:1268)

     at oracle.xdo.parser.v2.NonValidatingParser.parseRootElement(NonValidatingParser.java:338)

     at oracle.xdo.parser.v2.NonValidatingParser.parseDocument(NonValidatingParser.java:285)

     at oracle.xdo.parser.v2.XMLParser.parse(XMLParser.java:289)

     ... 17 more



[5/15/15 8:21:45 AM] [146364:RT1431956] Completed post-processing actions for request 1431956.

[5/15/15 8:50:39 AM] [GSMServiceController:146364] Received shutdown request.

[5/15/15 8:50:39 AM] [GSMServiceController:146364] Preparing to shutdown service.

[5/15/15 8:50:39 AM] [GSMServiceController:146364] Stopping all Service Threads.

[5/15/15 8:50:39 AM] [OPPServiceThread0] Preparing to shut down service thread.

[5/15/15 8:50:39 AM] [OPPServiceThread1] Preparing to shut down service thread.


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
  • 76
  • 77
  • 78
  • 79
  • 80
  • 81
  • 82
  • 83
  • 84
  • 85
  • 86
  • 87
  • 88
  • 89
  • 90
  • 91
  • 92
  • 93
  • 94
  • 95
  • 96
  • 97
  • 98
  • 99
  • 100
  • 101
  • 102
  • 103
  • 104
  • 105
  • 106
  • 107
  • 108
  • 109
  • 110

select *

  from FND_CONCURRENT_QUEUES

 where CONCURRENT_QUEUE_NAME = 'FNDCPOPP'

 for update

 ;




select *

  from  FND_CP_SERVICES

   --set DEVELOPER_PARAMETERS = 'J:oracle.apps.fnd.cp.gsf.GSMServiceController:-mx1024m'

 where SERVICE_ID =

       (select MANAGER_TYPE

          from FND_CONCURRENT_QUEUES

         where CONCURRENT_QUEUE_NAME = 'FNDCPOPP');







update FND_CP_SERVICES

   set DEVELOPER_PARAMETERS = 'J:oracle.apps.fnd.cp.gsf.GSMServiceController:-mx2048m'

 where SERVICE_ID =

       (select MANAGER_TYPE

          from FND_CONCURRENT_QUEUES

         where CONCURRENT_QUEUE_NAME = 'FNDCPOPP');


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46

-verbose:gc -Xmx2048M -Xms2048M

查看 opmn.xml

echo $ORA_CONFIG_HOME/10.1.3/opmn/conf/opmn.xml

/ebsfs/EBSPROD/inst/apps/EBSPROD_erp/ora/10.1.3/opmn/conf/opmn.xml


  • 1
  • 2
  • 3
  • 4

查看 CONTEXT_FILE


[applprod@erp log]$ echo $CONTEXT_FILE

/ebsfs/EBSPROD/inst/apps/EBSPROD_erp/appl/admin/EBSPROD_erp.xml

[Unloading class sun.reflect.GeneratedSerializationConstructorAccessor33]

[Unloading class sun.reflect.GeneratedSerializationConstructorAccessor27]

[Unloading class sun.reflect.GeneratedMethodAccessor8]

[Unloading class sun.reflect.GeneratedSerializationConstructorAccessor30]

[Unloading class sun.reflect.GeneratedSerializationConstructorAccessor23]



[GC 3166K->1755K(4992K), 0.0001490 secs]
[GC 3163K->1759K(4992K), 0.0001580 secs]
[GC 3167K->1756K(4992K), 0.0001540 secs]
[GC 3164K->1758K(4992K), 0.0001540 secs]
[GC 3166K->1756K(4992K), 0.0001560 secs]
[GC 3164K->1755K(4992K), 0.0001520 secs]
[GC 3163K->1759K(4992K), 0.0001570 secs]
[GC 3167K->1758K(4992K), 0.0001560 secs]
[GC 3166K->1756K(4992K), 0.0001610 secs]
[GC 3164K->1755K(4992K), 0.0001590 secs]
[GC 3163K->1757K(4992K), 0.0001530 secs]
[GC 3165K->1755K(4992K), 0.0001700 secs]


  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30

过于频繁的GC

修改 环境变量 $AFJSMARG 分配的内存大小

vi /ebsfs/EBSPROD/apps/apps_st/appl/EBSPROD_erp.env

-Xmx2048m -Xms2048m  -XX:MaxPermSize=512m


  • 1
  • 2
  • 3
  • 4

同时修改 $CONTEXT_FILE 文件的配置

vi $CONTEXT_FILE


  • 1
  • 2

MOS文章

R12: Troubleshooting Known XML Publisher and E-Business Suite (EBS) Integration Issues (文档 ID 1410160.1)
