1. 编写自定义方法, 必须实现 必须实现接口weaver.interfaces.workflow.action方法public String execute(RequestInfo request);
   1.1 编译为class 文件;

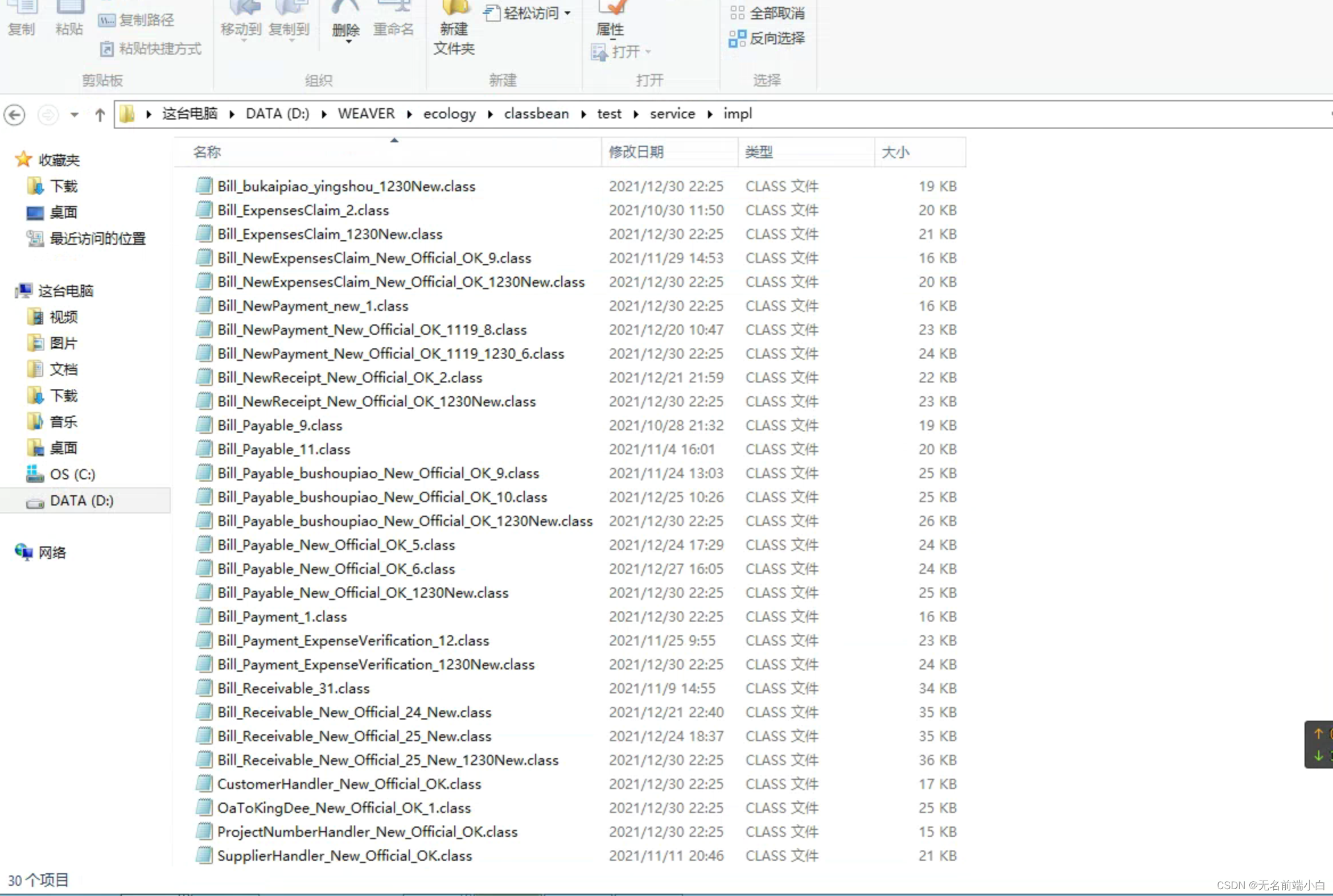

2. 将文件上传到服务器 D:\WEAVER\classbean\test\service\impl 目录;

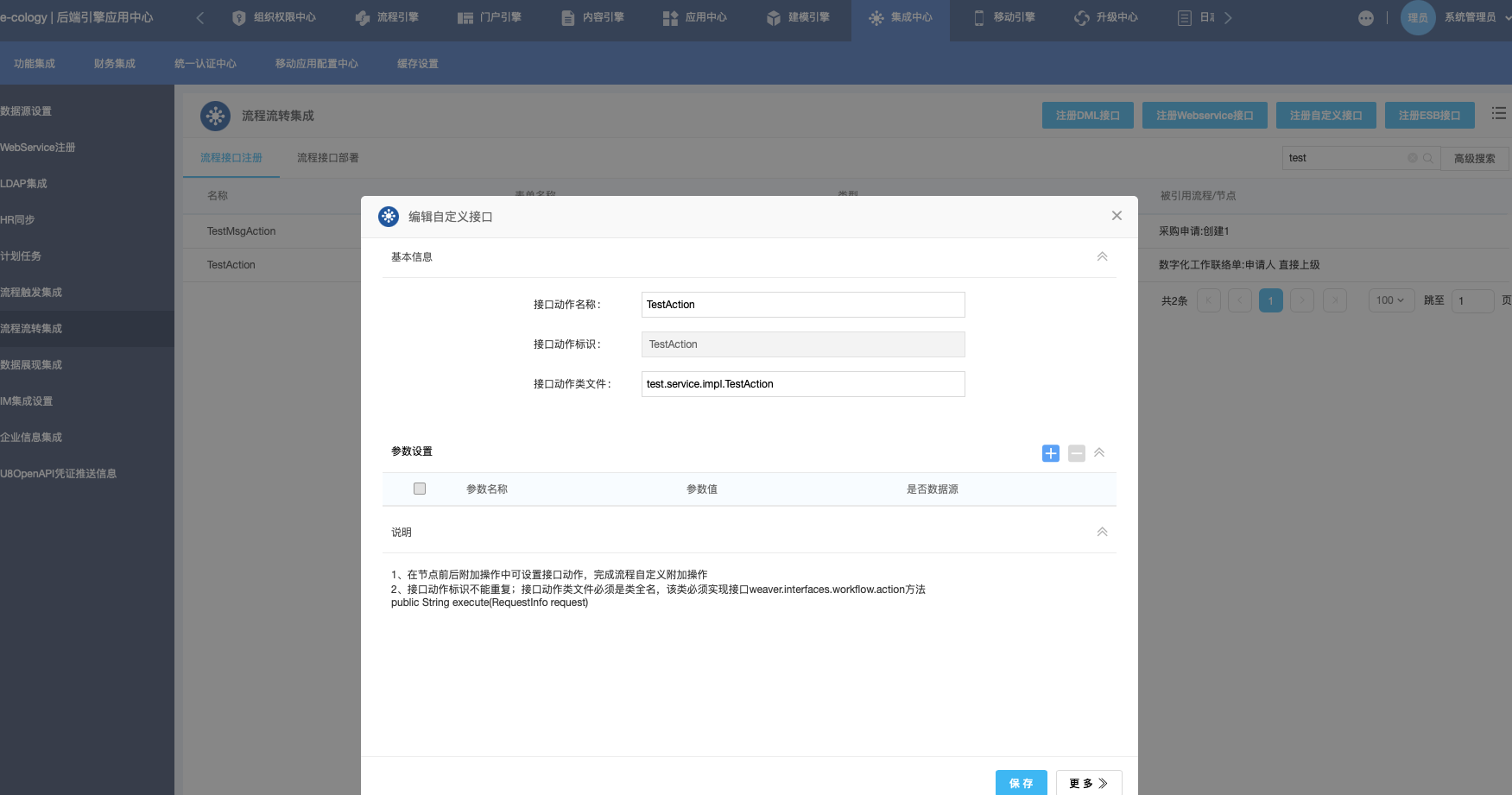

3. 在后台 集成中心-流程流转集成, 注册自定义接口;
   3.1 接口动作类文件填写 classbean 下文件路径;

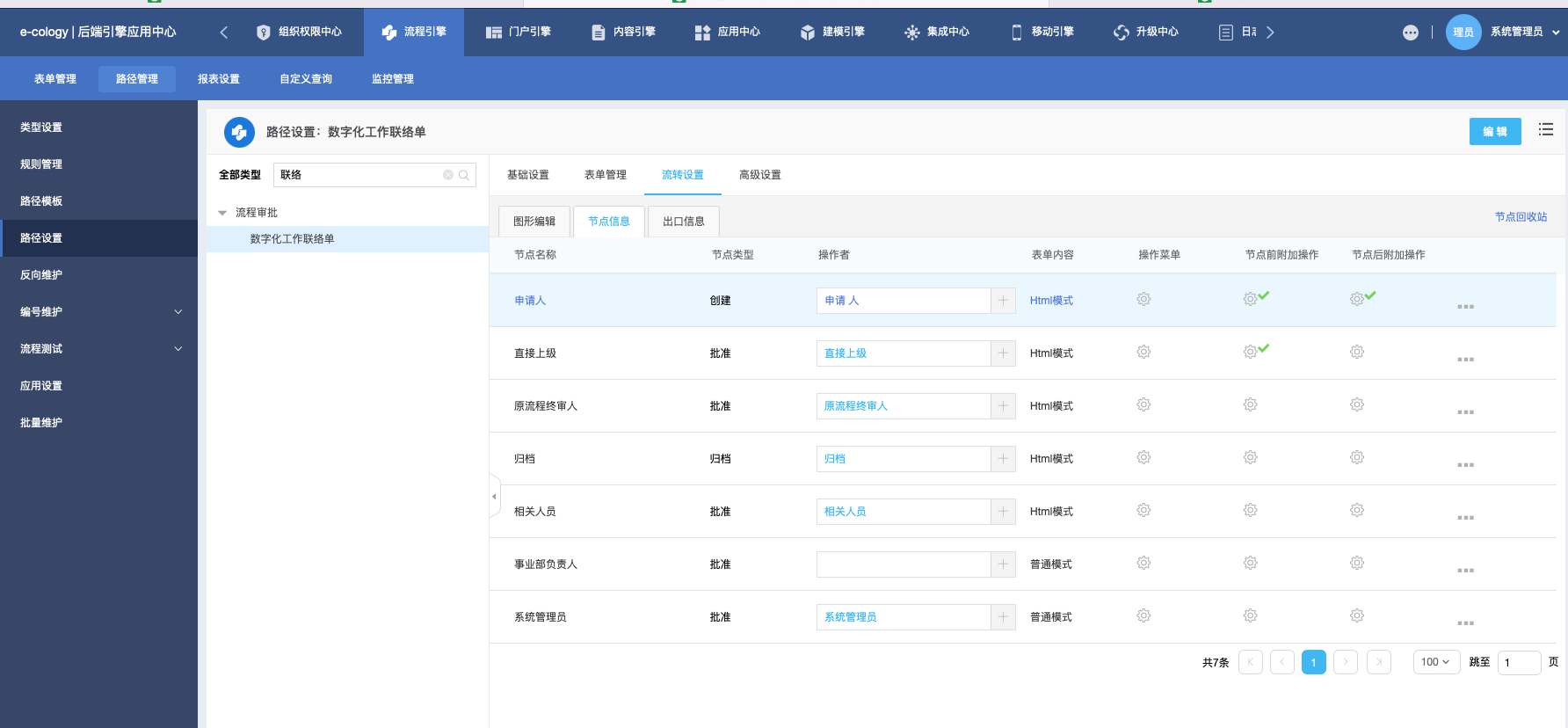

4. 在后台 流程引擎-路径管理-路径设置, 找到对应流程,选中流程;
   4.1. 在右侧 流转设置-节点信息, 点击对应节点的 节点前后附加操作按钮;

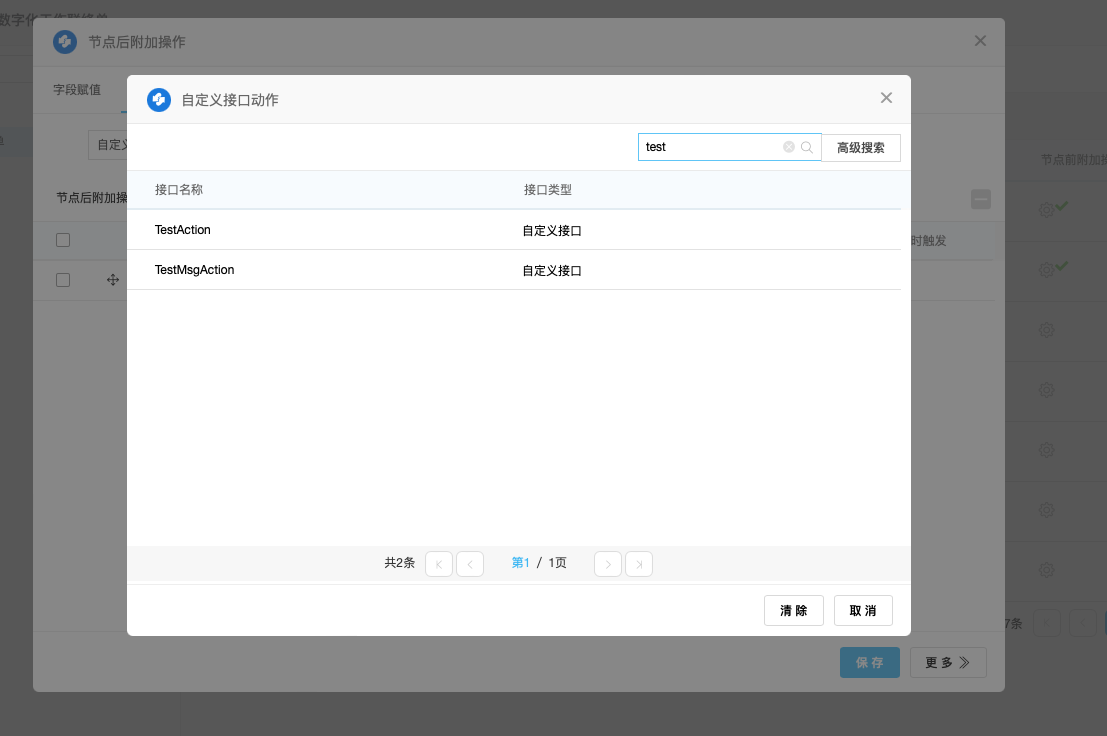

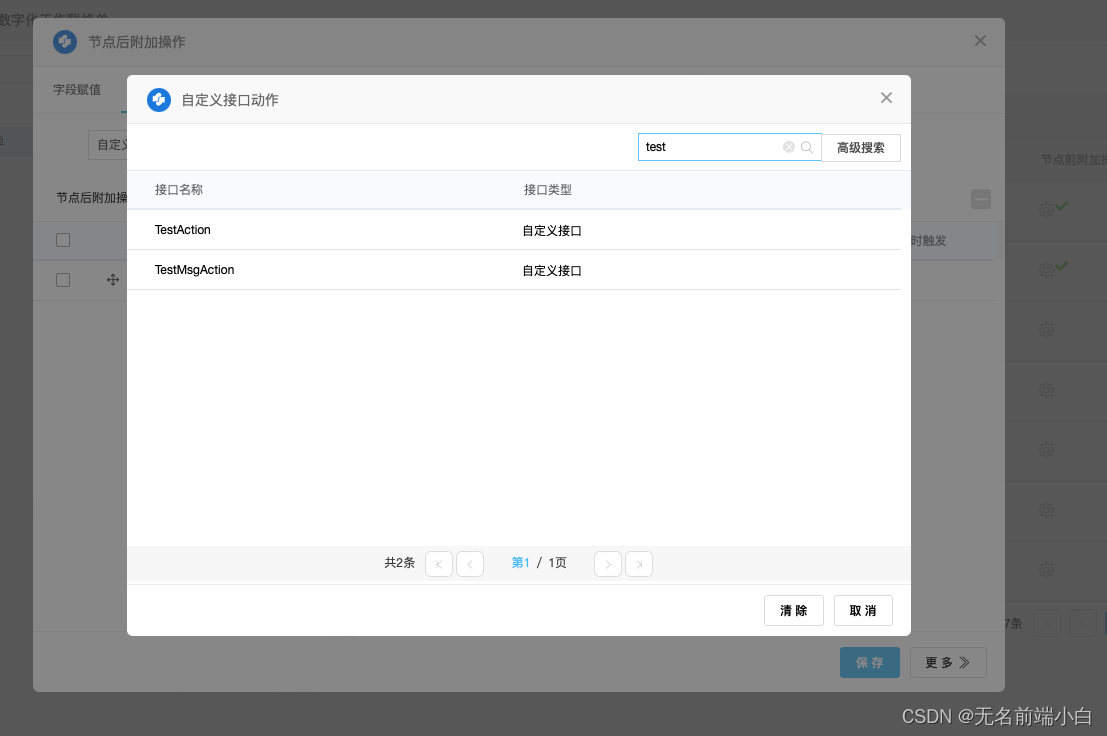

   4.2 弹出窗口中, 选择 外部接口tab, 接口来源 选择 自定义创建的接口;
   4.3 点击确定 保存;


5. 更新步骤
   5.1 更改原文件名称, 更新文件内容;
   5.2 重新编译文件;
   5.3 将编译后的class 后上传至服务器;

注意事项:

1. 自定义Action必须实现接口weaver.interfaces.workflow.action方法public String execute(RequestInfo request)
2. 自定义class 存放路径 D:\WEAVER\classbean\test\service\impl;
3. 每次更新内容后需要重名java 后再编译;

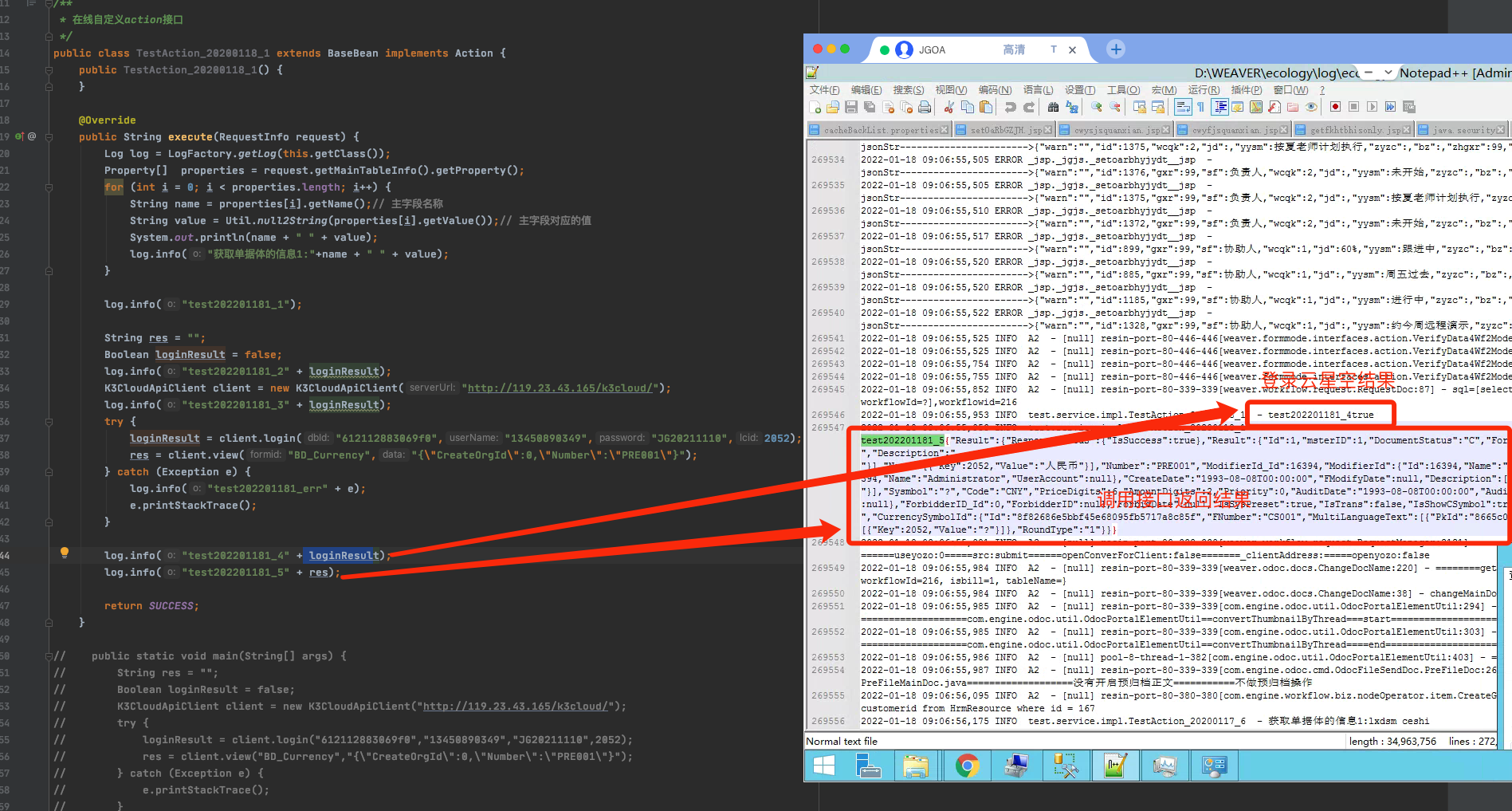

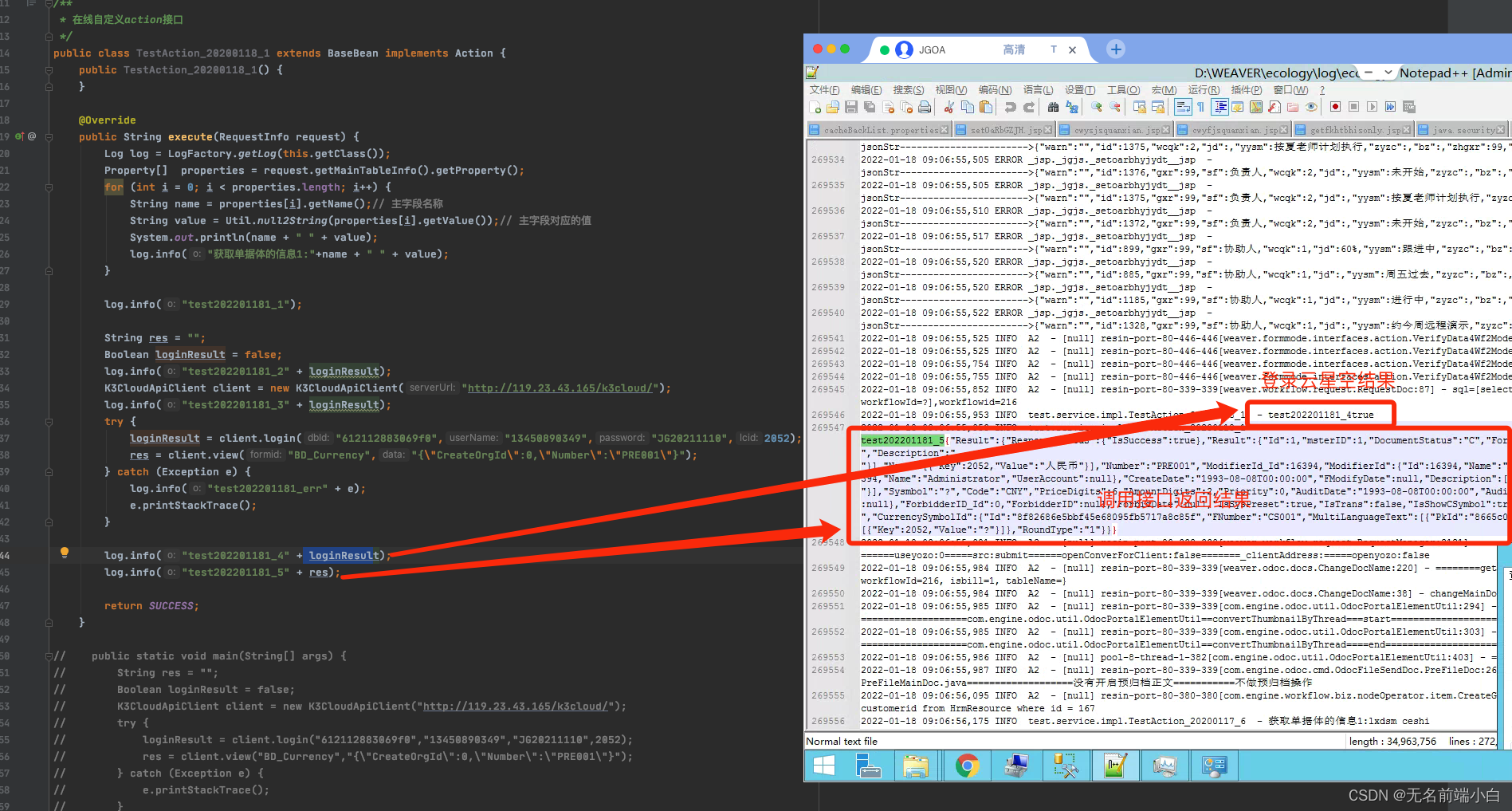

自定义 Action Demo

package test.service.impl;

import kingdee.bos.webapi.client.K3CloudApiClient;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import weaver.general.BaseBean;
import weaver.general.Util;
import weaver.interfaces.workflow.action.Action;
import weaver.soa.workflow.request.*;

/**
 * 在线自定义action接口
 */
public class TestAction_20200118_1 extends BaseBean implements Action {
    public TestAction_20200118_1() {
    }

    @Override
    public String execute(RequestInfo request) {
        // 日志
        Log log = LogFactory.getLog(this.getClass());

        // 获取主表信息
        Property[]  properties = request.getMainTableInfo().getProperty();
        for (int i = 0; i < properties.length; i++) {
            String name = properties[i].getName();// 主字段名称
            String value = Util.null2String(properties[i].getValue());// 主字段对应的值
            System.out.println(name + " " + value);
            log.info("获取单据体的信息:"+name + " " + value);
        }

        // 获取所有明细表
        DetailTable[] detailtable = request.getDetailTableInfo().getDetailTable();
        if (detailtable.length > 0) {
            for (int i = 0; i < detailtable.length; i++) {
                DetailTable dt = detailtable[i];// 指定明细表
                Row[] s = dt.getRow();// 当前明细表的所有数据,按行存储
                for (int j = 0; j < s.length; j++) {
                    Row r = s[j];// 指定行
                    Cell c[] = r.getCell();// 每行数据再按列存储
                    for (int k = 0; k < c.length; k++) {
                        Cell c1 = c[k];// 指定列
                        String name = c1.getName();// 明细字段名称
                        String value = c1.getValue();// 明细字段的值
                        System.out.println(name + " " + value);
                    }
                }
            }
        }

        // 调用ERP
        String res = "";
        Boolean loginResult = false;
        K3CloudApiClient client = new K3CloudApiClient("http://119.23.43.165/k3cloud/");
        try {
            loginResult = client.login("612112883069f0","13450890349","密码",2052);
            // 判断登录成功就调用ERP相应方法
            if(loginResult) {
                // 具体参数和调用方法参见  https://openapi.open.kingdee.com/ApiCenterDoc
                res = client.view("BD_Currency","{\"CreateOrgId\":0,\"Number\":\"PRE001\"}");
            }
        } catch (Exception e) {
            log.info("错误信息:" + e);
            e.printStackTrace();
        }
        log.info("接口响应结果:" + res);
        return SUCCESS;
    }

//    调用ERP接口 单元测试代码
//    public static void main(String[] args) {
//        String res = "";
//        Boolean loginResult = false;
//        K3CloudApiClient client = new K3CloudApiClient("http://119.23.xx.xx/k3cloud/");
//        try {
//            loginResult = client.login("612112883069f0","134xxxx0349","JG20211110",2052);
//            res = client.view("BD_Currency","{\"CreateOrgId\":0,\"Number\":\"PRE001\"}");
//        } catch (Exception e) {
//            e.printStackTrace();
//        }
//
//        System.out.println("test202201174_1" + client);
//        System.out.println("test202201174_2" + loginResult);
//        System.out.println(res.getClass().getSimpleName());
//        System.out.println("test202201174_3" + res);
//
//    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88

ERP对接

云星空文档 https://openapi.open.kingdee.com/ApiCenterDoc

1. 引入 K3CloudApiClient 包;
2. 实例化 client;
3. 执行登录动作;
4. 判断登录经过为 true , 执行余下动作;
5. 执行操作;

Demo

// 查看
client.View("BD_Account","{"CreateOrgId":0,"Number":"","Id":""}");

// 保存
client.Save("BD_Account","{"NeedUpDateFields":[],"NeedReturnFields")

// 审核
client.ExcuteOperation("BD_Account","Forbid","{"CreateOrgId":0,"Numbers":[],"Ids":"","PkEntryIds":[],"NetworkCtrl":""}");

// 反审
client.UnAudit("BD_Account","{"CreateOrgId":0,"Numbers":[],"Ids":"","InterationFlags":"","NetworkCtrl":"","IsVerifyProcInst":""}");

...
更多执行参见 金蝶云星空官方文档  https://openapi.open.kingdee.com/ApiCenterDoc
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

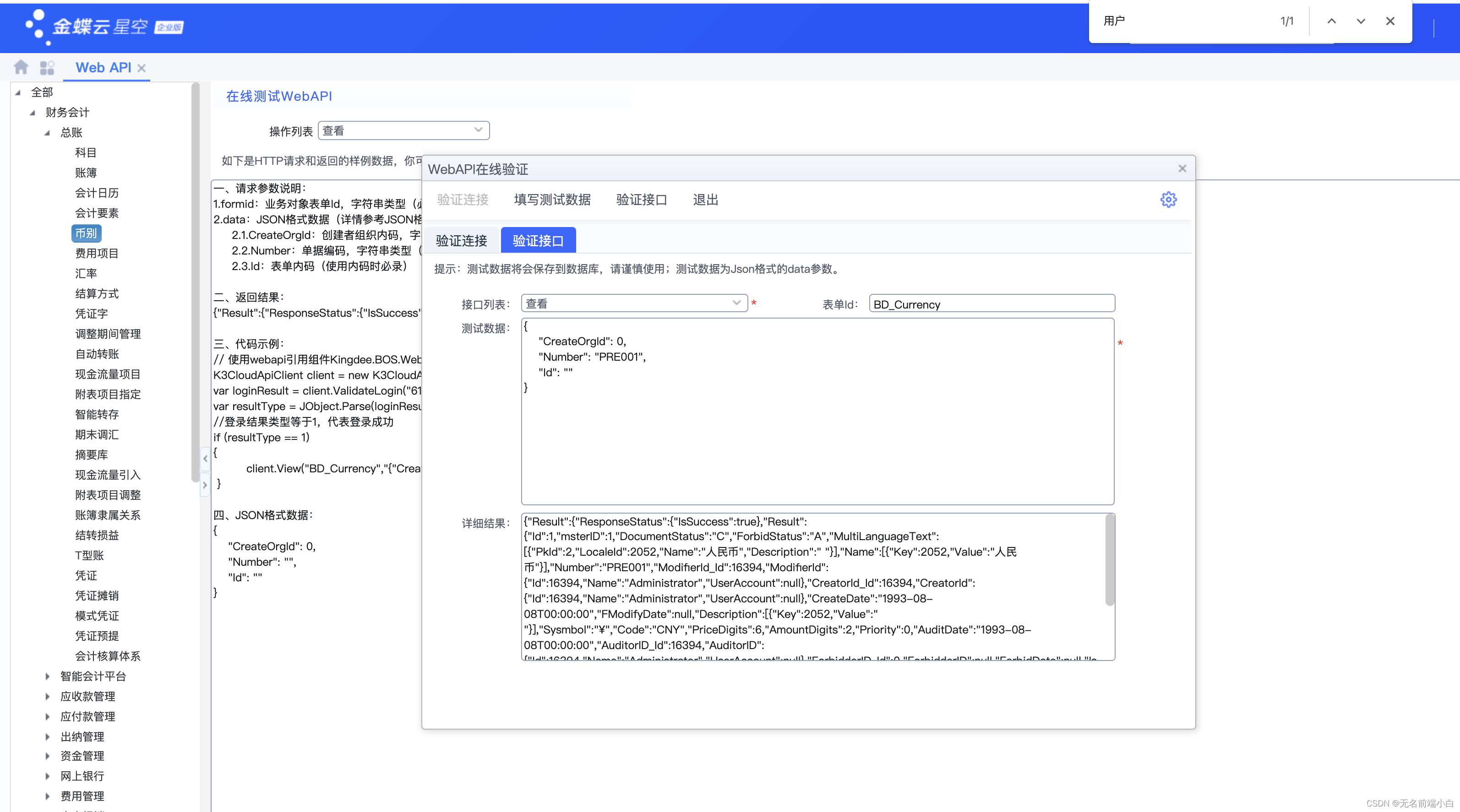

ERP webApi 测试
