【MATLAB航空航天工具箱】学习笔记--IERS国际地球自转服务的公报

  • 2021-11-21
  • Admin

背景

IERS(International Earth Rotation Service)即国际地球自转服务,于1988年由国际大地测量学和地球物理学联合会(International Union of Geodesy and Geophysics)与国际天文学联合会(International Astronomical Union,缩写为IAU)共同建立,用以取代国际时间局(BIH)的地球自转部分和原有的国际极移服务(IPMS),于1988年1月1日正式开始运作。

网址如下:

https://www.iers.org/IERS/EN/Home/home_node.htmlicon-default.png?t=LA92https://www.iers.org/IERS/EN/Home/home_node.html

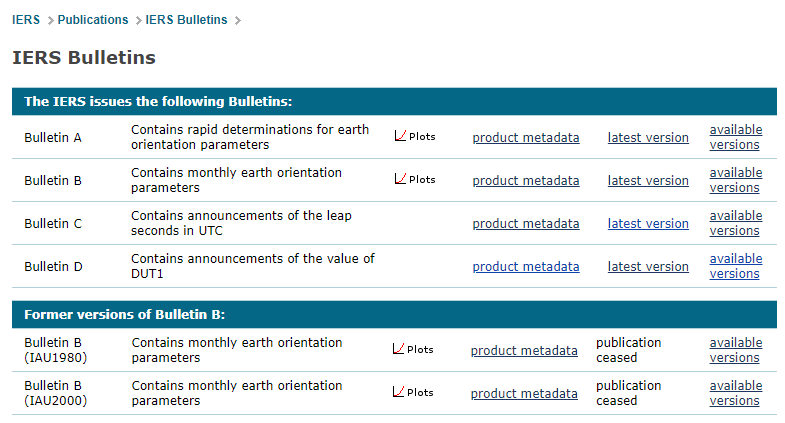

IERS公报

IERS公报Bulletins为IERS发布的地球指向数据(Earth Orientation Data)。如下所示:

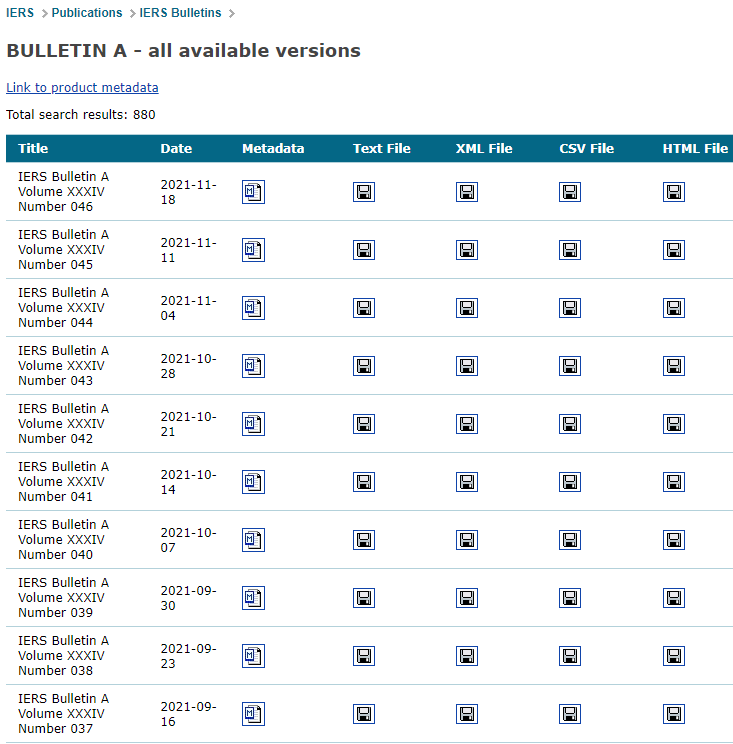

 Bulletin A

提供地球自转相关参数,每周发布一次(weekly)每日参数。包含如下4中参数:

(1)综合参数。General information including key definitions and the most recently adopted values of DUT1 and TAI-UTC.

(2)EOP信息。Quick-look daily estimates of the EOPs determined by smoothing the observed data. This involves the application of systematic corrections and statistical weighting. The results are published with a delay of about one to three days between the date of publication and the last available date with estimated EOP.

(3)极移参数预测。Predictions of x, y, and UT1-UTC, up to 365 days following the last day of data. The predictions use similar algorithms based on seasonal filtering and autoregressive processing for x, y, and UT1.

(4)极移级数的系数。The combination series for the celestial pole offsets. Bulletin A contains celestial pole offsets with respect to the IAU1980 Nutation theroy (dpsi and deps) and the IAU 2000 Resolutions (dX and dY), beginning on 1 January 2003.

最新信息如下:

 **********************************************************************
      *                                                                    *
      *                   I E R S   B U L L E T I N - A                    *
      *                                                                    *
      *           Rapid Service/Prediction of Earth Orientation            *
      **********************************************************************
      18 November 2021                                    Vol. XXXIV No. 046
      ______________________________________________________________________
      GENERAL INFORMATION:
         To receive this information electronically, contact:
            ser7@maia.usno.navy.mil or use

         MJD = Julian Date - 2 400 000.5 days
         UT2-UT1 = 0.022 sin(2*pi*T) - 0.012 cos(2*pi*T)
                                     - 0.006 sin(4*pi*T) + 0.007 cos(4*pi*T)
            where pi = 3.14159265... and T is the date in Besselian years.
         TT = TAI + 32.184 seconds
         DUT1= (UT1-UTC) transmitted with time signals
             =  -0.1 seconds beginning 17 July 2021 at 0000 UTC
         Beginning 1 January 2017:
            TAI-UTC = 37.000 000 seconds
     ***********************************************************************
     *                                                                     *
     *             There will NOT be a leap second introduced              *
     *                   in UTC at the end of Dec 2021                     *
     *                                                                     *
     * The US Naval Observatory's Rapid Service/Prediction Center website  *
     * (maia.usno.navy.mil) must undergo modernization and has been        *
     * offline since 24 October 2019. The expected completion of work and  *
     * return of service will be no earlier than Summer of 2021.           *
     *                                                                     *
     * Although the Bulletin A makes several references to maia, the       *
     * paragraph above supersedes any information contained in the         *
     * Bulletin A text.                                                    *
     *                                                                     *
     * Updated EOPs are available at NASA's Archive of Space Geodesy Data: *
     *   https://cddis.nasa.gov/archive/products/iers                      *
     *   ftps://gdc.cddis.eosdis.nasa.gov/products/iers                    *
     * Daily EOP data may be available here by 18:00 UTC, and Bulletin A   *
     * EOP data may be available by 20:00 UTC.                             *
     * For additional information on accessing CDDIS, please refer to:     *
     *   https://cddis.nasa.gov/About/CDDIS_File_Download_FAQ.html         *
     *                                                                     *
     * Updated EOPs may also be available at IERS:                         *
     *   https://datacenter.iers.org/eop.php                               *
     * EOP data files are uploaded directly from USNO to this site each    *
     * day. For further information, contact the IERS directly.            *
     *                                                                     *
     * Users should verify results obtained from these sites; we cannot    *
     * guarantee the integrity or timeliness of files provided at          *
     * third-party sites.                                                  *
     *                                                                     *
     * Questions and enquiries about EOPs can be emailed to the            *
     * following address:                                                  *
     *   usn.ncr.navobsydc.mbx.eopcp@mail.mil                              *
     * Due to ongoing email issues, please CC                              *
     *   navobsy_eop.fct@navy.mil                                          *
     * until further notice.                                               *
     *                                                                     *
     * Starting on the 18 Nov 2021, new versions of the USNO VLBI          *
     * solutions (usn2021c.eoxy and usn2021c.eopi) are being used.         *
     * The effect appears to be less than 0.1 mas in polar motion and      *
     * 10 us in UT1-UTC.                                                   *
     *                                                                     *
     * Distribution statement A.                                           *
     *   Approved for public release: distribution unlimited.              *
     *                                                                     *
     ***********************************************************************
     ________________________________________________________________________
       The contributed observations used in the preparation of this Bulletin
       are available at . The contributed analysis results are based
       on data from Very Long Baseline Interferometry (VLBI), Satellite Laser
       Ranging (SLR), the Global Positioning System (GPS) satellites, Lunar
       Laser Ranging (LLR), and meteorological predictions of variations in
       Atmospheric Angular Momentum (AAM).
     ________________________________________________________________________

      COMBINED EARTH ORIENTATION PARAMETERS:

                              IERS Rapid Service
              MJD      x    error     y    error   UT1-UTC   error
                       "      "       "      "        s        s
   21 11 12  59530 0.14852 .00009 0.24659 .00009 -0.106946 0.000014
   21 11 13  59531 0.14774 .00009 0.24648 .00009 -0.107249 0.000016
   21 11 14  59532 0.14695 .00009 0.24644 .00009 -0.107641 0.000014
   21 11 15  59533 0.14563 .00009 0.24631 .00009 -0.108004 0.000010
   21 11 16  59534 0.14361 .00009 0.24596 .00009 -0.108268 0.000010
   21 11 17  59535 0.14152 .00009 0.24546 .00009 -0.108455 0.000009
   21 11 18  59536 0.13974 .00009 0.24510 .00009 -0.108526 0.000055

      _______________________________________________________________________

      PREDICTIONS:
      The following formulas will not reproduce the predictions given below,
      but may be used to extend the predictions beyond the end of this table.

      x =  0.1471 + 0.0368 cos A - 0.1033 sin A - 0.0408 cos C - 0.0194 sin C
      y =  0.3549 - 0.0904 cos A - 0.0403 sin A - 0.0194 cos C + 0.0408 sin C
         UT1-UTC = -0.1168 + 0.00021 (MJD - 59544) - (UT2-UT1)

      where A = 2*pi*(MJD-59536)/365.25 and C = 2*pi*(MJD-59536)/435.

         TAI-UTC(MJD 59537) = 37.0
      The accuracy may be estimated from the expressions:
      S x,y = 0.00068 (MJD-59536)**0.80   S t = 0.00025 (MJD-59536)**0.75
      Estimated accuracies are:  Predictions     10 d   20 d   30 d   40 d
                                 Polar coord's  0.004  0.007  0.010  0.013
                                 UT1-UTC        0.0014 0.0024 0.0032 0.0040

                    MJD      x(arcsec)   y(arcsec)   UT1-UTC(sec)
       2021 11 19  59537       0.1380      0.2449     -0.10844
       2021 11 20  59538       0.1362      0.2448     -0.10816
       2021 11 21  59539       0.1345      0.2447     -0.10772
       2021 11 22  59540       0.1327      0.2448     -0.10718
       2021 11 23  59541       0.1308      0.2448     -0.10658
       2021 11 24  59542       0.1289      0.2449     -0.10597
       2021 11 25  59543       0.1270      0.2449     -0.10541
       2021 11 26  59544       0.1251      0.2450     -0.10498
       2021 11 27  59545       0.1233      0.2451     -0.10473
       2021 11 28  59546       0.1215      0.2452     -0.10472
       2021 11 29  59547       0.1195      0.2455     -0.10494
       2021 11 30  59548       0.1175      0.2457     -0.10533
       2021 12  1  59549       0.1155      0.2460     -0.10580
       2021 12  2  59550       0.1135      0.2463     -0.10625
       2021 12  3  59551       0.1114      0.2466     -0.10657
       2021 12  4  59552       0.1094      0.2470     -0.10665
       2021 12  5  59553       0.1075      0.2474     -0.10649
       2021 12  6  59554       0.1056      0.2478     -0.10614
       2021 12  7  59555       0.1036      0.2483     -0.10573
       2021 12  8  59556       0.1017      0.2488     -0.10540
       2021 12  9  59557       0.0998      0.2493     -0.10522
       2021 12 10  59558       0.0979      0.2499     -0.10521
       2021 12 11  59559       0.0960      0.2504     -0.10533
       2021 12 12  59560       0.0940      0.2510     -0.10551
       2021 12 13  59561       0.0922      0.2516     -0.10569
       2021 12 14  59562       0.0903      0.2523     -0.10580
       2021 12 15  59563       0.0884      0.2530     -0.10580
       2021 12 16  59564       0.0866      0.2537     -0.10563
       2021 12 17  59565       0.0847      0.2544     -0.10529
       2021 12 18  59566       0.0829      0.2552     -0.10477
       2021 12 19  59567       0.0811      0.2560     -0.10412
       2021 12 20  59568       0.0793      0.2568     -0.10337
       2021 12 21  59569       0.0775      0.2576     -0.10260
       2021 12 22  59570       0.0758      0.2585     -0.10187
       2021 12 23  59571       0.0741      0.2594     -0.10123
       2021 12 24  59572       0.0723      0.2603     -0.10076
       2021 12 25  59573       0.0706      0.2613     -0.10048
       2021 12 26  59574       0.0689      0.2622     -0.10042
       2021 12 27  59575       0.0672      0.2632     -0.10054
       2021 12 28  59576       0.0656      0.2643     -0.10078
       2021 12 29  59577       0.0639      0.2653     -0.10102
       2021 12 30  59578       0.0623      0.2664     -0.10116
       2021 12 31  59579       0.0607      0.2675     -0.10109
       2022  1  1  59580       0.0591      0.2686     -0.10076
       2022  1  2  59581       0.0575      0.2698     -0.10024
       2022  1  3  59582       0.0560      0.2710     -0.09962
       2022  1  4  59583       0.0544      0.2722     -0.09904
       2022  1  5  59584       0.0529      0.2734     -0.09860
       2022  1  6  59585       0.0514      0.2746     -0.09836
       2022  1  7  59586       0.0499      0.2759     -0.09830
       2022  1  8  59587       0.0485      0.2772     -0.09836
       2022  1  9  59588       0.0471      0.2785     -0.09844
       2022  1 10  59589       0.0456      0.2799     -0.09847
       2022  1 11  59590       0.0443      0.2812     -0.09839
       2022  1 12  59591       0.0429      0.2826     -0.09815
       2022  1 13  59592       0.0416      0.2840     -0.09775
       2022  1 14  59593       0.0403      0.2855     -0.09718
       2022  1 15  59594       0.0390      0.2869     -0.09647
       2022  1 16  59595       0.0377      0.2884     -0.09567
       2022  1 17  59596       0.0365      0.2899     -0.09483
       2022  1 18  59597       0.0353      0.2914     -0.09405
       2022  1 19  59598       0.0341      0.2929     -0.09337
       2022  1 20  59599       0.0329      0.2945     -0.09288
       2022  1 21  59600       0.0318      0.2960     -0.09260
       2022  1 22  59601       0.0307      0.2976     -0.09256
       2022  1 23  59602       0.0296      0.2992     -0.09271
       2022  1 24  59603       0.0286      0.3008     -0.09299
       2022  1 25  59604       0.0275      0.3025     -0.09332
       2022  1 26  59605       0.0265      0.3041     -0.09359
       2022  1 27  59606       0.0256      0.3058     -0.09371
       2022  1 28  59607       0.0246      0.3075     -0.09363
       2022  1 29  59608       0.0237      0.3092     -0.09336
       2022  1 30  59609       0.0229      0.3109     -0.09299
       2022  1 31  59610       0.0220      0.3126     -0.09263
       2022  2  1  59611       0.0212      0.3143     -0.09241
       2022  2  2  59612       0.0204      0.3161     -0.09240
       2022  2  3  59613       0.0197      0.3179     -0.09261
       2022  2  4  59614       0.0189      0.3196     -0.09299
       2022  2  5  59615       0.0183      0.3214     -0.09344
       2022  2  6  59616       0.0176      0.3232     -0.09388
       2022  2  7  59617       0.0170      0.3250     -0.09421
       2022  2  8  59618       0.0164      0.3268     -0.09439
       2022  2  9  59619       0.0158      0.3287     -0.09440
       2022  2 10  59620       0.0153      0.3305     -0.09422
       2022  2 11  59621       0.0148      0.3324     -0.09390
       2022  2 12  59622       0.0143      0.3342     -0.09346
       2022  2 13  59623       0.0139      0.3361     -0.09299
       2022  2 14  59624       0.0135      0.3380     -0.09254
       2022  2 15  59625       0.0131      0.3398     -0.09220
       2022  2 16  59626       0.0128      0.3417     -0.09203
       2022  2 17  59627       0.0125      0.3436     -0.09208
       2022  2 18  59628       0.0122      0.3455     -0.09236
       2022  2 19  59629       0.0120      0.3474     -0.09285
       2022  2 20  59630       0.0118      0.3493     -0.09348
       2022  2 21  59631       0.0116      0.3512     -0.09416
       2022  2 22  59632       0.0115      0.3531     -0.09478
       2022  2 23  59633       0.0114      0.3550     -0.09524
       2022  2 24  59634       0.0113      0.3570     -0.09550
       2022  2 25  59635       0.0113      0.3589     -0.09556
       2022  2 26  59636       0.0113      0.3608     -0.09549
       2022  2 27  59637       0.0113      0.3627     -0.09539
       2022  2 28  59638       0.0114      0.3646     -0.09538
       2022  3  1  59639       0.0115      0.3665     -0.09557
       2022  3  2  59640       0.0116      0.3685     -0.09601
       2022  3  3  59641       0.0118      0.3704     -0.09666
       2022  3  4  59642       0.0120      0.3723     -0.09744
       2022  3  5  59643       0.0122      0.3742     -0.09826
       2022  3  6  59644       0.0125      0.3761     -0.09902
       2022  3  7  59645       0.0128      0.3780     -0.09955
       2022  3  8  59646       0.0131      0.3799     -0.09990
       2022  3  9  59647       0.0135      0.3818     -0.10006
       2022  3 10  59648       0.0139      0.3837     -0.10005
       2022  3 11  59649       0.0143      0.3856     -0.09991
       2022  3 12  59650       0.0148      0.3875     -0.09970
       2022  3 13  59651       0.0153      0.3893     -0.09949
       2022  3 14  59652       0.0158      0.3912     -0.09935
       2022  3 15  59653       0.0164      0.3931     -0.09936
       2022  3 16  59654       0.0170      0.3949     -0.09957
       2022  3 17  59655       0.0177      0.3967     -0.10003
       2022  3 18  59656       0.0183      0.3986     -0.10071
       2022  3 19  59657       0.0190      0.4004     -0.10157
       2022  3 20  59658       0.0198      0.4022     -0.10250
       2022  3 21  59659       0.0205      0.4040     -0.10338
       2022  3 22  59660       0.0213      0.4058     -0.10410
       2022  3 23  59661       0.0222      0.4076     -0.10459
       2022  3 24  59662       0.0230      0.4093     -0.10485
       2022  3 25  59663       0.0239      0.4111     -0.10494
       2022  3 26  59664       0.0248      0.4128     -0.10495
       2022  3 27  59665       0.0258      0.4145     -0.10500
       2022  3 28  59666       0.0268      0.4163     -0.10521
       2022  3 29  59667       0.0278      0.4179     -0.10562
       2022  3 30  59668       0.0288      0.4196     -0.10625
       2022  3 31  59669       0.0299      0.4213     -0.10705
       2022  4  1  59670       0.0310      0.4229     -0.10791
       2022  4  2  59671       0.0322      0.4246     -0.10874
       2022  4  3  59672       0.0333      0.4262     -0.10946
       2022  4  4  59673       0.0345      0.4278     -0.11000
       2022  4  5  59674       0.0357      0.4294     -0.11034
       2022  4  6  59675       0.0370      0.4309     -0.11047
       2022  4  7  59676       0.0383      0.4325     -0.11045
       2022  4  8  59677       0.0396      0.4340     -0.11032
       2022  4  9  59678       0.0409      0.4355     -0.11014
       2022  4 10  59679       0.0423      0.4370     -0.11001
       2022  4 11  59680       0.0436      0.4385     -0.10998
       2022  4 12  59681       0.0450      0.4399     -0.11012
       2022  4 13  59682       0.0465      0.4413     -0.11048
       2022  4 14  59683       0.0479      0.4427     -0.11107
       2022  4 15  59684       0.0494      0.4441     -0.11187
       2022  4 16  59685       0.0509      0.4455     -0.11278
       2022  4 17  59686       0.0525      0.4468     -0.11370
       2022  4 18  59687       0.0540      0.4481     -0.11447
       2022  4 19  59688       0.0556      0.4494     -0.11501
       2022  4 20  59689       0.0572      0.4507     -0.11527
       2022  4 21  59690       0.0588      0.4519     -0.11531
       2022  4 22  59691       0.0605      0.4531     -0.11522
       2022  4 23  59692       0.0621      0.4543     -0.11513
       2022  4 24  59693       0.0638      0.4555     -0.11514
       2022  4 25  59694       0.0655      0.4566     -0.11532
       2022  4 26  59695       0.0673      0.4577     -0.11570
       2022  4 27  59696       0.0690      0.4588     -0.11623
       2022  4 28  59697       0.0708      0.4599     -0.11684
       2022  4 29  59698       0.0726      0.4609     -0.11744
       2022  4 30  59699       0.0744      0.4619     -0.11794
       2022  5  1  59700       0.0762      0.4629     -0.11828
       2022  5  2  59701       0.0780      0.4639     -0.11842
       2022  5  3  59702       0.0799      0.4648     -0.11834
       2022  5  4  59703       0.0818      0.4657     -0.11807
       2022  5  5  59704       0.0837      0.4665     -0.11766
       2022  5  6  59705       0.0856      0.4674     -0.11718
       2022  5  7  59706       0.0875      0.4682     -0.11669
       2022  5  8  59707       0.0894      0.4690     -0.11627
       2022  5  9  59708       0.0914      0.4697     -0.11598
       2022  5 10  59709       0.0933      0.4705     -0.11589
       2022  5 11  59710       0.0953      0.4712     -0.11600
       2022  5 12  59711       0.0973      0.4718     -0.11633
       2022  5 13  59712       0.0993      0.4724     -0.11683
       2022  5 14  59713       0.1013      0.4731     -0.11738
       2022  5 15  59714       0.1033      0.4736     -0.11787
       2022  5 16  59715       0.1053      0.4742     -0.11817
       2022  5 17  59716       0.1074      0.4747     -0.11821
       2022  5 18  59717       0.1094      0.4752     -0.11800
       2022  5 19  59718       0.1115      0.4756     -0.11763
       2022  5 20  59719       0.1135      0.4760     -0.11723
       2022  5 21  59720       0.1156      0.4764     -0.11694
       2022  5 22  59721       0.1177      0.4768     -0.11683
       2022  5 23  59722       0.1197      0.4771     -0.11694
       2022  5 24  59723       0.1218      0.4774     -0.11725
       2022  5 25  59724       0.1239      0.4777     -0.11766
       2022  5 26  59725       0.1260      0.4779     -0.11810
       2022  5 27  59726       0.1281      0.4781     -0.11846
       2022  5 28  59727       0.1302      0.4783     -0.11867
       2022  5 29  59728       0.1323      0.4784     -0.11867
       2022  5 30  59729       0.1344      0.4785     -0.11842
       2022  5 31  59730       0.1365      0.4786     -0.11796
       2022  6  1  59731       0.1386      0.4786     -0.11732
       2022  6  2  59732       0.1407      0.4786     -0.11658
       2022  6  3  59733       0.1428      0.4786     -0.11582
       2022  6  4  59734       0.1450      0.4785     -0.11512
       2022  6  5  59735       0.1471      0.4784     -0.11453
       2022  6  6  59736       0.1492      0.4783     -0.11411
       2022  6  7  59737       0.1513      0.4782     -0.11388
       2022  6  8  59738       0.1534      0.4780     -0.11383
       2022  6  9  59739       0.1555      0.4778     -0.11394
       2022  6 10  59740       0.1575      0.4775     -0.11414
       2022  6 11  59741       0.1596      0.4772     -0.11431
       2022  6 12  59742       0.1617      0.4769     -0.11431
       2022  6 13  59743       0.1638      0.4766     -0.11405
       2022  6 14  59744       0.1658      0.4762     -0.11347
       2022  6 15  59745       0.1679      0.4758     -0.11262
       2022  6 16  59746       0.1700      0.4754     -0.11161
       2022  6 17  59747       0.1720      0.4749     -0.11059
       2022  6 18  59748       0.1740      0.4744     -0.10968
       2022  6 19  59749       0.1761      0.4739     -0.10894
       2022  6 20  59750       0.1781      0.4733     -0.10835
       2022  6 21  59751       0.1801      0.4727     -0.10784
       2022  6 22  59752       0.1821      0.4721     -0.10735
       2022  6 23  59753       0.1840      0.4715     -0.10681
       2022  6 24  59754       0.1860      0.4708     -0.10618
       2022  6 25  59755       0.1880      0.4701     -0.10539
       2022  6 26  59756       0.1899      0.4693     -0.10443
       2022  6 27  59757       0.1918      0.4686     -0.10330
       2022  6 28  59758       0.1937      0.4678     -0.10200
       2022  6 29  59759       0.1956      0.4669     -0.10051
       2022  6 30  59760       0.1975      0.4661     -0.09895
       2022  7  1  59761       0.1994      0.4652     -0.09747
       2022  7  2  59762       0.2013      0.4643     -0.09618
       2022  7  3  59763       0.2031      0.4633     -0.09503
       2022  7  4  59764       0.2049      0.4624     -0.09408
       2022  7  5  59765       0.2067      0.4614     -0.09337
       2022  7  6  59766       0.2085      0.4603     -0.09278
       2022  7  7  59767       0.2102      0.4593     -0.09231
       2022  7  8  59768       0.2120      0.4582     -0.09183
       2022  7  9  59769       0.2137      0.4571     -0.09125
       2022  7 10  59770       0.2154      0.4560     -0.09045
       2022  7 11  59771       0.2171      0.4548     -0.08939
       2022  7 12  59772       0.2188      0.4536     -0.08806
       2022  7 13  59773       0.2204      0.4524     -0.08664
       2022  7 14  59774       0.2220      0.4512     -0.08522
       2022  7 15  59775       0.2236      0.4499     -0.08392
       2022  7 16  59776       0.2252      0.4487     -0.08290
       2022  7 17  59777       0.2267      0.4474     -0.08210
       2022  7 18  59778       0.2282      0.4460     -0.08151
       2022  7 19  59779       0.2297      0.4447     -0.08093
       2022  7 20  59780       0.2312      0.4433     -0.08020
       2022  7 21  59781       0.2327      0.4419     -0.07930
       2022  7 22  59782       0.2341      0.4405     -0.07820
       2022  7 23  59783       0.2355      0.4391     -0.07684
       2022  7 24  59784       0.2369      0.4376     -0.07526
       2022  7 25  59785       0.2382      0.4361     -0.07347
       2022  7 26  59786       0.2395      0.4346     -0.07156
       2022  7 27  59787       0.2408      0.4331     -0.06962
       2022  7 28  59788       0.2421      0.4316     -0.06767
       2022  7 29  59789       0.2433      0.4300     -0.06587
       2022  7 30  59790       0.2445      0.4284     -0.06424
       2022  7 31  59791       0.2457      0.4268     -0.06283
       2022  8  1  59792       0.2468      0.4252     -0.06163
       2022  8  2  59793       0.2480      0.4236     -0.06063
       2022  8  3  59794       0.2490      0.4220     -0.05973
       2022  8  4  59795       0.2501      0.4203     -0.05881
       2022  8  5  59796       0.2511      0.4186     -0.05782
       2022  8  6  59797       0.2521      0.4169     -0.05673
       2022  8  7  59798       0.2531      0.4152     -0.05542
       2022  8  8  59799       0.2540      0.4135     -0.05393
       2022  8  9  59800       0.2549      0.4118     -0.05237
       2022  8 10  59801       0.2558      0.4100     -0.05082
       2022  8 11  59802       0.2567      0.4083     -0.04941
       2022  8 12  59803       0.2575      0.4065     -0.04822
       2022  8 13  59804       0.2582      0.4047     -0.04729
       2022  8 14  59805       0.2590      0.4029     -0.04661
       2022  8 15  59806       0.2597      0.4011     -0.04607
       2022  8 16  59807       0.2604      0.3993     -0.04555
       2022  8 17  59808       0.2610      0.3974     -0.04495
       2022  8 18  59809       0.2616      0.3956     -0.04417
       2022  8 19  59810       0.2622      0.3938     -0.04317
       2022  8 20  59811       0.2628      0.3919     -0.04201
       2022  8 21  59812       0.2633      0.3900     -0.04069
       2022  8 22  59813       0.2638      0.3882     -0.03915
       2022  8 23  59814       0.2642      0.3863     -0.03755
       2022  8 24  59815       0.2646      0.3844     -0.03596
       2022  8 25  59816       0.2650      0.3825     -0.03444
       2022  8 26  59817       0.2653      0.3806     -0.03308
       2022  8 27  59818       0.2656      0.3787     -0.03193
       2022  8 28  59819       0.2659      0.3768     -0.03097
       2022  8 29  59820       0.2661      0.3749     -0.03019
       2022  8 30  59821       0.2664      0.3730     -0.02962
       2022  8 31  59822       0.2665      0.3711     -0.02916
       2022  9  1  59823       0.2667      0.3692     -0.02875
       2022  9  2  59824       0.2668      0.3673     -0.02832
       2022  9  3  59825       0.2668      0.3653     -0.02777
       2022  9  4  59826       0.2669      0.3634     -0.02711
       2022  9  5  59827       0.2669      0.3615     -0.02638
       2022  9  6  59828       0.2668      0.3596     -0.02563
       2022  9  7  59829       0.2667      0.3577     -0.02502
       2022  9  8  59830       0.2666      0.3558     -0.02461
       2022  9  9  59831       0.2665      0.3538     -0.02446
       2022  9 10  59832       0.2663      0.3519     -0.02457
       2022  9 11  59833       0.2661      0.3500     -0.02489
       2022  9 12  59834       0.2659      0.3481     -0.02530
       2022  9 13  59835       0.2656      0.3462     -0.02561
       2022  9 14  59836       0.2653      0.3443     -0.02573
       2022  9 15  59837       0.2649      0.3424     -0.02563
       2022  9 16  59838       0.2645      0.3406     -0.02530
       2022  9 17  59839       0.2641      0.3387     -0.02478
       2022  9 18  59840       0.2637      0.3368     -0.02413
       2022  9 19  59841       0.2632      0.3350     -0.02340
       2022  9 20  59842       0.2627      0.3331     -0.02263
       2022  9 21  59843       0.2621      0.3313     -0.02187
       2022  9 22  59844       0.2616      0.3294     -0.02118
       2022  9 23  59845       0.2609      0.3276     -0.02070
       2022  9 24  59846       0.2603      0.3258     -0.02046
       2022  9 25  59847       0.2596      0.3240     -0.02034
       2022  9 26  59848       0.2589      0.3222     -0.02033
       2022  9 27  59849       0.2582      0.3204     -0.02045
       2022  9 28  59850       0.2574      0.3186     -0.02058
       2022  9 29  59851       0.2566      0.3169     -0.02060
       2022  9 30  59852       0.2557      0.3151     -0.02046
       2022 10  1  59853       0.2549      0.3134     -0.02002
       2022 10  2  59854       0.2540      0.3117     -0.01939
       2022 10  3  59855       0.2530      0.3100     -0.01867
       2022 10  4  59856       0.2521      0.3083     -0.01796
       2022 10  5  59857       0.2511      0.3066     -0.01743
       2022 10  6  59858       0.2500      0.3050     -0.01714
       2022 10  7  59859       0.2490      0.3034     -0.01711
       2022 10  8  59860       0.2479      0.3017     -0.01744
       2022 10  9  59861       0.2468      0.3001     -0.01791
       2022 10 10  59862       0.2457      0.2985     -0.01840
       2022 10 11  59863       0.2445      0.2970     -0.01876
       2022 10 12  59864       0.2433      0.2954     -0.01887
       2022 10 13  59865       0.2421      0.2939     -0.01871
       2022 10 14  59866       0.2408      0.2924     -0.01836
       2022 10 15  59867       0.2395      0.2909     -0.01787
       2022 10 16  59868       0.2382      0.2894     -0.01725
       2022 10 17  59869       0.2369      0.2880     -0.01658
       2022 10 18  59870       0.2356      0.2865     -0.01595
       2022 10 19  59871       0.2342      0.2851     -0.01545
       2022 10 20  59872       0.2328      0.2837     -0.01514
       2022 10 21  59873       0.2313      0.2824     -0.01506
       2022 10 22  59874       0.2299      0.2810     -0.01520
       2022 10 23  59875       0.2284      0.2797     -0.01558
       2022 10 24  59876       0.2269      0.2784     -0.01613
       2022 10 25  59877       0.2254      0.2772     -0.01671
       2022 10 26  59878       0.2238      0.2759     -0.01717
       2022 10 27  59879       0.2223      0.2747     -0.01745
       2022 10 28  59880       0.2207      0.2735     -0.01752
       2022 10 29  59881       0.2191      0.2723     -0.01739
       2022 10 30  59882       0.2174      0.2712     -0.01713
       2022 10 31  59883       0.2158      0.2701     -0.01692
       2022 11  1  59884       0.2141      0.2690     -0.01678
       2022 11  2  59885       0.2124      0.2679     -0.01679
       2022 11  3  59886       0.2107      0.2669     -0.01700
       2022 11  4  59887       0.2090      0.2658     -0.01740
       2022 11  5  59888       0.2072      0.2649     -0.01795
       2022 11  6  59889       0.2055      0.2639     -0.01846
       2022 11  7  59890       0.2037      0.2630     -0.01893
       2022 11  8  59891       0.2019      0.2621     -0.01926
       2022 11  9  59892       0.2001      0.2612     -0.01938
       2022 11 10  59893       0.1983      0.2603     -0.01925
       2022 11 11  59894       0.1964      0.2595     -0.01894
       2022 11 12  59895       0.1946      0.2587     -0.01857
       2022 11 13  59896       0.1927      0.2580     -0.01813
       2022 11 14  59897       0.1908      0.2572     -0.01775
       2022 11 15  59898       0.1889      0.2565     -0.01747
       2022 11 16  59899       0.1870      0.2559     -0.01734
       2022 11 17  59900       0.1851      0.2552     -0.01740
       2022 11 18  59901       0.1832      0.2546     -0.01760
      These predictions are based on all announced leap seconds.

      CELESTIAL POLE OFFSET SERIES:
                           NEOS Celestial Pole Offset Series
                       MJD      dpsi    error     deps    error
                                        (msec. of arc)
                      59514  -114.75    0.68   -8.04    0.05
                      59515  -114.54    0.68   -8.09    0.05
                      59516  -114.07    0.68   -8.00    0.05
                      59517  -113.56    0.70   -7.78    0.12
                      59518  -113.35    0.70   -7.55    0.12
                      59519  -113.52    0.72   -7.40    0.10
                      59520  -113.81    0.74   -7.26    0.06
                      59521  -113.98    0.74   -7.07    0.06

                     IAU2000A Celestial Pole Offset Series
                      MJD      dX     error     dY     error
                                    (msec. of arc)
                      59514    0.270  0.269   -0.049   0.052
                      59515    0.272  0.269   -0.050   0.052
                      59516    0.275  0.269   -0.055   0.052
                      59517    0.279  0.279   -0.059   0.119
                      59518    0.282  0.279   -0.061   0.119
                      59519    0.286  0.286   -0.063   0.098
                      59520    0.290  0.296   -0.063   0.056
                      59521    0.294  0.296   -0.064   0.056

    The recommended software to predict celestial pole offsets can be found at

    and software for the calculation of the dX and dY components with
    respect to IAU2000A Nutation/Precession Theory can be found at the

    web site in Chapter 5 Section 5.5 of the IERS Conventions (2010).

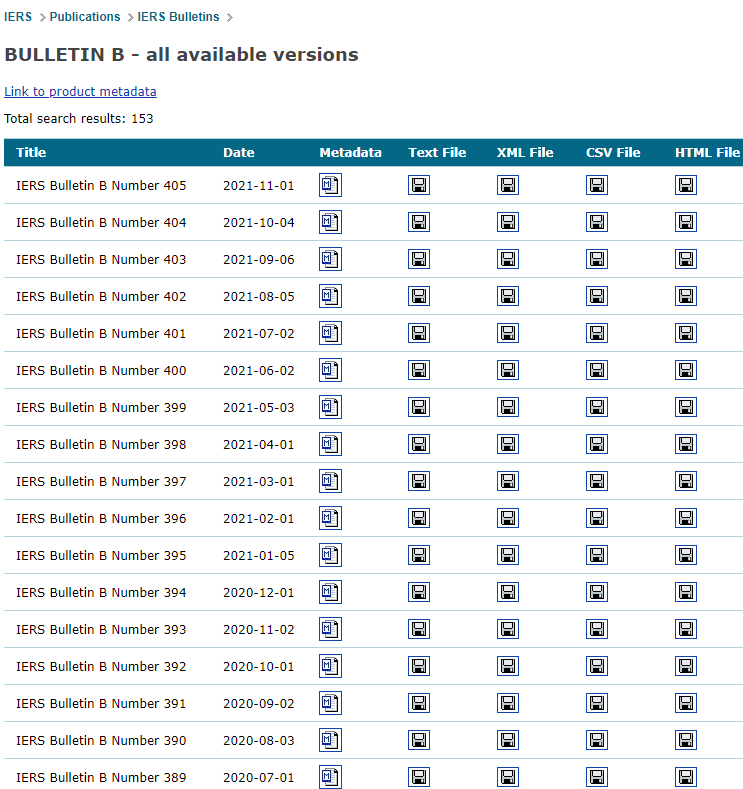

历史数据如下:

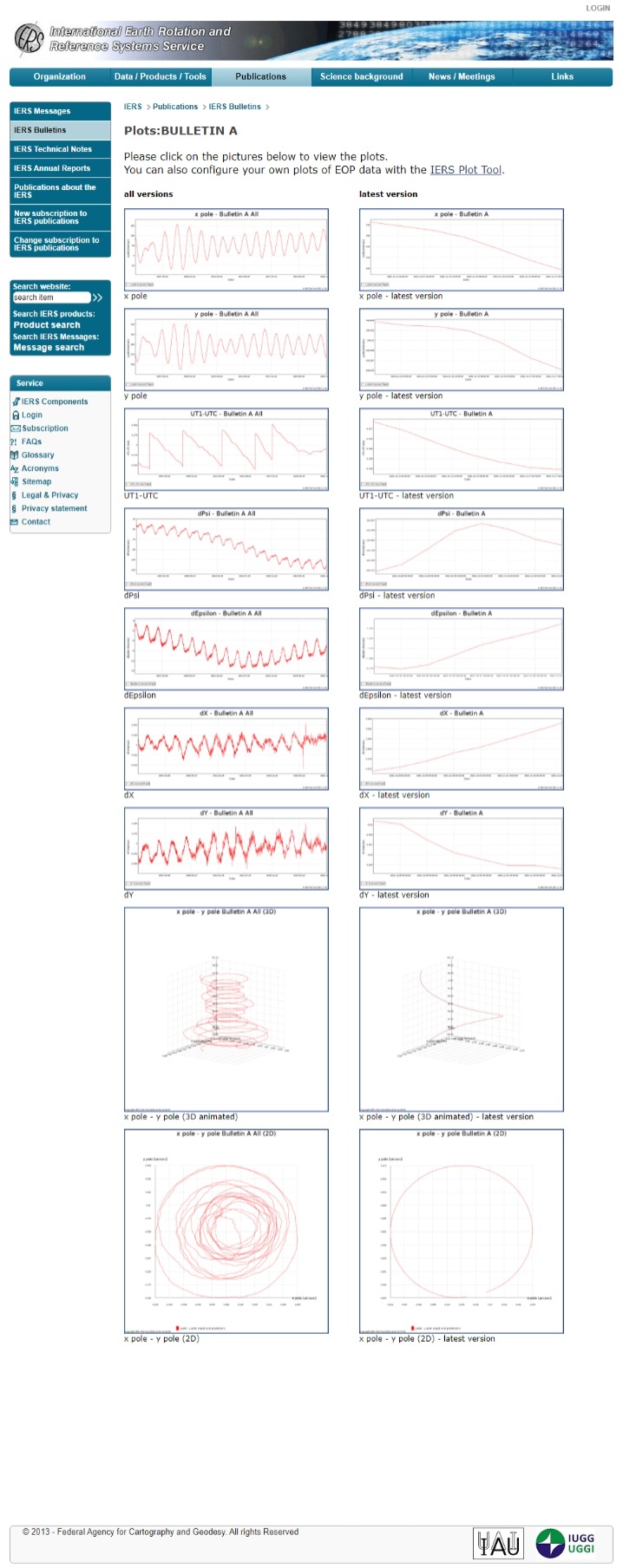

 曲线如下所示:

Bulletin B

提供地球自转相关参数,每月更新一次(monthly)每日参数。包含如下5种参数:

(1)综合参数。Daily final values at 0:00 UT of x, y, UT1-UTC, dX, dY, and their uncertainties. Time span: one month with final values, one month with preliminary values.

(2)极移相关。Daily final values at 0:00 UT of celestial pole offsets dPsi and dEps in the IAU 1980 system and their uncertainties.

(3)地球自转角速度相关。Earth angular velocity (daily estimates of LOD and OMEGA with their uncertainties).

(4)闰秒相关。Information on the time scales and announcement of occurring leap seconds.

(5)Average formal precision of the individual and combined series contributing or not to the combination and their agreement with the combination.

最新信息如下:

    BULLETIN B 405
                                        			1 November 2021

 Contents are described in https://hpiers.obspm.fr/iers/bul/bulb_new/bulletinb.pdf

 1 - DAILY FINAL VALUES OF x, y, UT1-UTC, dX, dY
 Angular unit is milliarcsecond (mas), time unit is millisecond (ms).
 Upgraded solution from March 1 2017 - consistent with ITRF 2014.

       DATE     MJD       x       y      UT1-UTC      dX     dY     x err    y err   UT1 err  dX err  dY err
    (0 h UTC)            mas     mas       ms         mas    mas     mas      mas      ms     mas     mas

 Final values

 Mean formal error      0.023    0.017    0.0091    0.020  0.044

2021   9   2   59459  243.859  325.972 -118.2574    0.260 -0.013    0.023    0.017    0.0106  0.055  0.059
2021   9   3   59460  243.838  324.135 -117.2280    0.266 -0.077    0.023    0.017    0.0105  0.055  0.057
2021   9   4   59461  243.924  322.819 -116.2657    0.233 -0.089    0.023    0.017    0.0106  0.054  0.056
2021   9   5   59462  243.284  321.221 -115.4565    0.188 -0.083    0.023    0.017    0.0107  0.054  0.054
2021   9   6   59463  242.288  319.291 -114.9183    0.143 -0.077    0.024    0.017    0.0113  0.054  0.053
2021   9   7   59464  241.085  317.267 -114.5864    0.097 -0.071    0.024    0.017    0.0109  0.053  0.052
2021   9   8   59465  240.168  315.380 -114.4389    0.052 -0.065    0.024    0.017    0.0107  0.053  0.051
2021   9   9   59466  239.509  313.682 -114.4456    0.108 -0.082    0.024    0.017    0.0093  0.053  0.050
2021   9  10   59467  239.055  311.944 -114.5001    0.190 -0.103    0.024    0.017    0.0091  0.053  0.049
2021   9  11   59468  238.903  310.398 -114.5067    0.217 -0.108    0.024    0.017    0.0091  0.052  0.048
2021   9  12   59469  239.057  309.176 -114.3417    0.225 -0.108    0.023    0.017    0.0090  0.052  0.047
2021   9  13   59470  239.061  308.241 -113.9194    0.233 -0.107    0.023    0.017    0.0091  0.052  0.046
2021   9  14   59471  238.135  306.840 -113.2542    0.240 -0.106    0.023    0.017    0.0089  0.052  0.045
2021   9  15   59472  236.855  305.424 -112.4265    0.259 -0.133    0.023    0.018    0.0089  0.052  0.045
2021   9  16   59473  235.175  304.217 -111.5600    0.281 -0.168    0.023    0.017    0.0090  0.051  0.044
2021   9  17   59474  234.052  302.470 -110.7776    0.303 -0.202    0.023    0.018    0.0091  0.051  0.044
2021   9  18   59475  233.267  300.669 -110.1847    0.293 -0.178    0.023    0.018    0.0091  0.051  0.043
2021   9  19   59476  231.901  298.971 -109.7908    0.272 -0.133    0.023    0.018    0.0092  0.051  0.042
2021   9  20   59477  230.860  297.082 -109.5369    0.250 -0.087    0.024    0.018    0.0090  0.051  0.041
2021   9  21   59478  230.386  295.169 -109.3835    0.228 -0.042    0.024    0.018    0.0091  0.051  0.041
2021   9  22   59479  230.280  293.410 -109.2939    0.212 -0.051    0.024    0.019    0.0092  0.051  0.040
2021   9  23   59480  229.745  291.932 -109.2075    0.198 -0.074    0.024    0.018    0.0085  0.051  0.040
2021   9  24   59481  229.059  290.744 -109.0710    0.184 -0.098    0.024    0.019    0.0086  0.051  0.040
2021   9  25   59482  228.196  289.721 -108.8548    0.195 -0.100    0.024    0.019    0.0087  0.051  0.039
2021   9  26   59483  226.765  288.616 -108.5235    0.213 -0.096    0.025    0.019    0.0088  0.051  0.038
2021   9  27   59484  224.983  286.909 -108.0259    0.230 -0.091    0.025    0.019    0.0076  0.051  0.037
2021   9  28   59485  223.233  285.091 -107.3996    0.248 -0.087    0.025    0.019    0.0075  0.050  0.036
2021   9  29   59486  221.642  283.266 -106.7014    0.260 -0.096    0.025    0.019    0.0073  0.050  0.035
2021   9  30   59487  220.649  281.274 -105.9687    0.271 -0.109    0.025    0.020    0.0072  0.050  0.034
2021  10   1   59488  219.900  279.843 -105.2566    0.282 -0.121    0.025    0.019    0.0072  0.050  0.033

 Preliminary extension
2021  10   2   59489  219.232  278.385 -104.6635    0.293 -0.134    0.025    0.020    0.0072  0.050  0.032
2021  10   3   59490  218.114  277.440 -104.2262    0.305 -0.147    0.025    0.020    0.0071  0.050  0.031
2021  10   4   59491  216.468  276.395 -104.0410    0.316 -0.159    0.025    0.020    0.0070  0.050  0.031
2021  10   5   59492  214.967  275.266 -104.1426    0.327 -0.172    0.025    0.020    0.0069  0.050  0.030
2021  10   6   59493  212.890  274.071 -104.5133    0.257 -0.165    0.024    0.020    0.0071  0.051  0.032
2021  10   7   59494  210.668  272.305 -105.0356    0.168 -0.154    0.024    0.020    0.0073  0.053  0.035
2021  10   8   59495  208.744  270.355 -105.5549    0.079 -0.142    0.024    0.020    0.0076  0.054  0.039
2021  10   9   59496  206.989  268.621 -105.9192    0.047 -0.131    0.024    0.020    0.0079  0.500  0.500
2021  10  10   59497  205.589  267.051 -106.0522    0.076 -0.125    0.024    0.020    0.0082  0.500  0.500
2021  10  11   59498  204.293  265.935 -105.9543    0.144 -0.124    0.025    0.020    0.0085  0.500  0.500
2021  10  12   59499  202.934  265.318 -105.6850    0.215 -0.127    0.025    0.020    0.0088  0.500  0.500
2021  10  13   59500  201.345  265.113 -105.3514    0.254 -0.130    0.025    0.020    0.0092  0.500  0.500
2021  10  14   59501  199.532  264.475 -105.0681    0.251 -0.131    0.025    0.020    0.0095  0.500  0.500
2021  10  15   59502  197.145  264.051 -104.8445    0.222 -0.128    0.026    0.021    0.0098  0.500  0.500
2021  10  16   59503  194.539  263.308 -104.7370    0.194 -0.122    0.026    0.021    0.0100  0.500  0.500
2021  10  17   59504  192.521  262.737 -104.7974    0.187 -0.112    0.026    0.021    0.0103  0.500  0.500
2021  10  18   59505  190.328  262.125 -104.9803    0.200 -0.103    0.027    0.021    0.0106  0.500  0.500
2021  10  19   59506  188.429  261.104 -105.2903    0.217 -0.097    0.027    0.021    0.0109  0.500  0.500
2021  10  20   59507  186.954  260.390 -105.6536    0.222 -0.096    0.028    0.022    0.0113  0.500  0.500
2021  10  21   59508  185.888  259.685 -105.9425    0.214 -0.100    0.028    0.022    0.0116  0.500  0.500
2021  10  22   59509  185.111  258.936 -106.1405    0.203 -0.108    0.028    0.022    0.0119  0.500  0.500
2021  10  23   59510  183.996  258.127 -106.1835    0.202 -0.117    0.029    0.023    0.0122  0.500  0.500
2021  10  24   59511  182.170  256.865 -105.9600    0.215 -0.123    0.029    0.023    0.0124  0.500  0.500
2021  10  25   59512  180.756  255.683 -105.5671    0.233 -0.126    0.030    0.023    0.0128  0.500  0.500
2021  10  26   59513  179.436  255.133 -105.0647    0.243 -0.125    0.031    0.024    0.0132  0.500  0.500
2021  10  27   59514  177.472  254.623 -104.5525    0.237 -0.124    0.032    0.024    0.0137  0.500  0.500
2021  10  28   59515  174.986  254.205 -104.1327    0.226 -0.127    0.033    0.025    0.0142  0.500  0.500
2021  10  29   59516  172.885  253.728 -103.7683    0.226 -0.136    0.034    0.026    0.0148  0.500  0.500
2021  10  30   59517  171.141  253.493 -103.5929    0.247 -0.149    0.035    0.027    0.0153  0.500  0.500
2021  10  31   59518  169.136  253.040 -103.7186    0.279 -0.164    0.037    0.028    0.0159  0.500  0.500
2021  11   1   59519  167.147  252.476 -104.2354    0.299 -0.174    0.039    0.029    0.0164  0.500  0.500


 2 - DAILY FINAL VALUES OF CELESTIAL POLE OFFSETS dPsi1980 & dEps1980
  dPsi1980   dEps1980 ....dPsi,dEps / IAU 1980 precession-nutation model
 Description : ftp://hpiers.obspm.fr/iers/bul/bulb_new/bulletinb.pdf
 The Reference Systems are described in the 2006 IERS Annual Report.

       DATE     MJD    dPsi1980   dEps1980  sig dPsi  sig dEps
    (0 h UTC)             mas        mas      mas       mas

2021   9   2   59459  -118.581    -9.390     0.138     0.059
2021   9   3   59460  -118.364    -9.679     0.138     0.057
2021   9   4   59461  -118.147    -9.782     0.136     0.056
2021   9   5   59462  -117.995    -9.664     0.136     0.054
2021   9   6   59463  -117.966    -9.415     0.136     0.053
2021   9   7   59464  -118.054    -9.194     0.133     0.052
2021   9   8   59465  -118.217    -9.134     0.133     0.051
2021   9   9   59466  -118.199    -9.278     0.133     0.050
2021   9  10   59467  -118.196    -9.493     0.133     0.049
2021   9  11   59468  -118.376    -9.600     0.131     0.048
2021   9  12   59469  -118.582    -9.536     0.131     0.047
2021   9  13   59470  -118.703    -9.367     0.131     0.046
2021   9  14   59471  -118.709    -9.209     0.131     0.045
2021   9  15   59472  -118.563    -9.153     0.131     0.045
2021   9  16   59473  -118.302    -9.166     0.128     0.044
2021   9  17   59474  -117.983    -9.205     0.128     0.044
2021   9  18   59475  -117.773    -9.189     0.128     0.043
2021   9  19   59476  -117.690    -9.120     0.128     0.042
2021   9  20   59477  -117.703    -8.970     0.128     0.041
2021   9  21   59478  -117.748    -8.731     0.128     0.041
2021   9  22   59479  -117.791    -8.533     0.128     0.040
2021   9  23   59480  -117.893    -8.459     0.128     0.040
2021   9  24   59481  -118.064    -8.550     0.128     0.040
2021   9  25   59482  -118.132    -8.702     0.128     0.039
2021   9  26   59483  -118.029    -8.801     0.128     0.038
2021   9  27   59484  -117.816    -8.811     0.128     0.037
2021   9  28   59485  -117.636    -8.811     0.126     0.036
2021   9  29   59486  -117.530    -8.894     0.126     0.035
2021   9  30   59487  -117.318    -9.028     0.126     0.034
2021  10   1   59488  -116.884    -9.102     0.126     0.033


 3 - EARTH ANGULAR VELOCITY : DAILY FINAL VALUES OF LOD, OMEGA AT 0hUTC

 LOD     : Excess of the Length of day - 86400 s TAI
 OMEGA   : Earth angular velocity
 Description: ftp://hpiers.obspm.fr/iers/bul/bulb_new/bulletinb.pdf

    DATE        MJD     LOD     sigma      OMEGA           sigma
 (0 h UTC)              ms       ms        mas/ms          mas/ms

2021   9   2   59459 -1.0516  0.0070  15.04106736174    0.00000000122
2021   9   3   59460 -1.0009  0.0069  15.04106735291    0.00000000120
2021   9   4   59461 -0.8934  0.0069  15.04106733420    0.00000000120
2021   9   5   59462 -0.7065  0.0069  15.04106730166    0.00000000120
2021   9   6   59463 -0.4500  0.0069  15.04106725701    0.00000000120
2021   9   7   59464 -0.2230  0.0069  15.04106721749    0.00000000120
2021   9   8   59465 -0.0487  0.0069  15.04106718715    0.00000000120
2021   9   9   59466  0.0445  0.0068  15.04106717092    0.00000000118
2021   9  10   59467  0.0481  0.0069  15.04106717030    0.00000000120
2021   9  11   59468 -0.0661  0.0068  15.04106719018    0.00000000118
2021   9  12   59469 -0.2835  0.0068  15.04106722802    0.00000000118
2021   9  13   59470 -0.5446  0.0068  15.04106727348    0.00000000118
2021   9  14   59471 -0.7658  0.0069  15.04106731199    0.00000000120
2021   9  15   59472 -0.8470  0.0069  15.04106732612    0.00000000120
2021   9  16   59473 -0.8380  0.0068  15.04106732455    0.00000000118
2021   9  17   59474 -0.6952  0.0068  15.04106729970    0.00000000118
2021   9  18   59475 -0.4981  0.0068  15.04106726538    0.00000000118
2021   9  19   59476 -0.3079  0.0068  15.04106723227    0.00000000118
2021   9  20   59477 -0.1935  0.0069  15.04106721236    0.00000000120
2021   9  21   59478 -0.1309  0.0068  15.04106720146    0.00000000118
2021   9  22   59479 -0.0808  0.0068  15.04106719274    0.00000000118
2021   9  23   59480 -0.1148  0.0067  15.04106719866    0.00000000117
2021   9  24   59481 -0.1808  0.0068  15.04106721015    0.00000000118
2021   9  25   59482 -0.2793  0.0068  15.04106722729    0.00000000118
2021   9  26   59483 -0.4236  0.0068  15.04106725241    0.00000000118
2021   9  27   59484 -0.5541  0.0068  15.04106727513    0.00000000118
2021   9  28   59485 -0.6578  0.0068  15.04106729318    0.00000000118
2021   9  29   59486 -0.7266  0.0068  15.04106730516    0.00000000118
2021   9  30   59487 -0.7290  0.0068  15.04106730558    0.00000000118
2021  10   1   59488 -0.6552  0.0067  15.04106729273    0.00000000117


 4 - INFORMATION ON TIME SCALES


     TAI - UTC = 37 s.         during period [59459-59488]

     No leap second introduced during period [59459-59488]

     All information concerning time scales :
	 - leap seconds announcements : Bulletin C
	 - DUT1 announcements (UT1-UTC with 0.1 s accuracy) : Bulletin D
      can be found at :
         - web site : http://hpiers.obspm.fr/eop-pc/
         - anonymous ftp://hpiers.obspm.fr/iers/


 5 - SUMMARY OF CONTRIBUTED EARTH ORIENTATION PARAMETERS SERIES
 This section gives the average precision of the individual series, some of them
 contributing to the combination (*) and their average agreement with it.
 The period covered is that one of Bulletin B.

    Units :  micro-arc-seconds for x/y/dX/dY        micro-seconds for UT1/LOD
-----------------------------------------------------------------------------
  EOP series             first line  : Mean  formal  uncertainty
  Periods covered        second line : Weighted RMS agreement with Bulletin B
-----------------------------------------------------------------------------
                                x     y    UT1   LOD   dX    dY   Data Number

 VLBI Standards

 CGS
 cgs2007a.eops                155   175    13     -     0     0       9
 59460.24 to 59485.63         260   369    98     -    74   211

 BKG
 bkg00020a.eops                57    70     4     -    15    43       9
 59460.27 to 59485.21          89   158    13     -    46    64

 GSFC
 gsf2020a.eoxy                 50    55     3    11    14    40       9
 59460.27 to 59485.21         113    86    12    24    41    53

 IAA
 iaa2021a.eops                 43    48     2     -    12    33       8
 59460.27 to 59485.21         198   344    17     -    50   124

 USNO
 usn2021b.eoxy                 41    52     3     -    15    45       9
 59460.27 to 59485.21         133   168    12     -    37    27

 IVS      *
 ivs20r1X.eops                 13    16     0     -     5    14       8
 59460.25 to 59485.21          80    47     8     -     9     9


 VLBI Intensive

 GSI      *
 gsiint2c.eopi                  -     -     4     -     -     -       7
 59461.33 to 59483.33           -     -    15     -     -     -

 BKG      *
 bkg2020.eopi                   -     -    12     -     -     -      32
 59459.79 to 59487.79           -     -    38     -     -     -

 GSFC     *
 gsf2020a.eopi                  -     -    17     -     -     -      31
 59459.79 to 59487.79           -     -   178     -     -     -

 IAA      *
 iaa2021a.eopi                  -     -    72     -     -     -      31
 59459.79 to 59487.79           -     -    62     -     -     -

 USNO     *
 usn2021b.eopi                  -     -    13     -     -     -      31
 59459.79 to 59487.79           -     -    87     -     -     -


 GPS

 CODE
 COD*ERP_R                      5     5     -     0     -     -      29
 59459.50 to 59487.50          26    25     -    14     -     -

 JPL
 jpl*.erp                      11    12     -     7     -     -      29
 59459.50 to 59487.50          40    34     -    16     -     -

 GFZ
 gfz*.erp                       7     8     -     2     -     -      29
 59459.50 to 59487.50          31    34     -     9     -     -

 ESOC
 esa*.erp                       7     8     -     4     -     -      29
 59459.50 to 59487.50          32    36     -     9     -     -

 SIO
 sio*.erp  siu*.erp            30    28     -     5     -     -      29
 59459.50 to 59487.50          43    34     -    14     -     -

 EMR
 emr*.erp                       3     3     -     1     -     -      29
 59459.50 to 59487.50          48    38     -    15     -     -

 IAA
 gnss.res                       0     0     -     0     -     -      29
 59459.50 to 59487.50          53    69     -    24     -     -

 GRGS
 grg*.erp                     228   228     -     0     -     -      29
 59459.50 to 59487.50          24    20     -    12     -     -

 ASI
 asi*.erp                       9     9     -     0     -     -      29
 59459.50 to 59487.50          52    45     -    64     -     -

 MIT
 mit*.erp                      12    12     -     2     -     -      29
 59459.50 to 59487.50          37    36     -    13     -     -

 IGR      *
 igs96p02.erp                   9     8     -     2     -     -      29
 59459.50 to 59487.50          28    27     -    10     -     -

 IGS      *
 igs00p03.erp                   3     3     -     0     -     -      29
 59459.50 to 59487.50          30    32     -    13     -     -


 SLR

 MCC
 tg*.02                       165   183     -    34     -     -      30
 59459.00 to 59488.00         102   107     -   220     -     -

 IAA
 slr_v.dat                     55    64     -     4     -     -      29
 59459.00 to 59488.00         209   202     -    26     -     -

 ASI
 slr_oca*.eop                  64    73     -    15     -     -      29
 59459.50 to 59487.50         193   224     -    48     -     -

 ILRS     *
 ilrsa.eop                     36    41     -     6     -     -      29
 59459.50 to 59487.50         150   178     -    32     -     -


 BULLETIN A

 NEOS
 mark3.out                     20    21     5     -     -     -      30
 59459.00 to 59488.00          55    40    31     -     -     -

To unsubscribe : http://hpiers.obspm.fr/eop-pc/products/bulletins/bulletin_registration.html

历史数据如下:

 曲线如下所示:



Bulletin C

提供UTC时间中闰秒信息,每半年更新一次(bi-annual)。

最新信息如下:




     INTERNATIONAL EARTH ROTATION AND REFERENCE SYSTEMS SERVICE (IERS)

SERVICE INTERNATIONAL DE LA ROTATION TERRESTRE ET DES SYSTEMES DE REFERENCE


SERVICE DE LA ROTATION TERRESTRE DE L'IERS
OBSERVATOIRE DE PARIS
61, Av. de l'Observatoire 75014 PARIS (France)
Tel.      : +33 1 40 51 23 35
e-mail    : services.iers@obspm.fr
http://hpiers.obspm.fr/eop-pc


                                              Paris, 05 July 2021


                                              Bulletin C 62

                                              To authorities responsible
                                              for the measurement and
                                              distribution of time



                          INFORMATION ON UTC - TAI


 NO leap second will be introduced at the end of December 2021.
 The difference between Coordinated Universal Time UTC and the
 International Atomic Time TAI is :

     from 2017 January 1, 0h UTC, until further notice : UTC-TAI = -37 s

 Leap seconds can be introduced in UTC at the end of the months of December
 or June,  depending on the evolution of UT1-TAI. Bulletin C is mailed every
 six months, either to announce a time step in UTC, or to confirm that there
 will be no time step at the next possible date.


                                            Christian BIZOUARD
                                            Director
                                            Earth Orientation Center of IERS
					    Observatoire de Paris, France

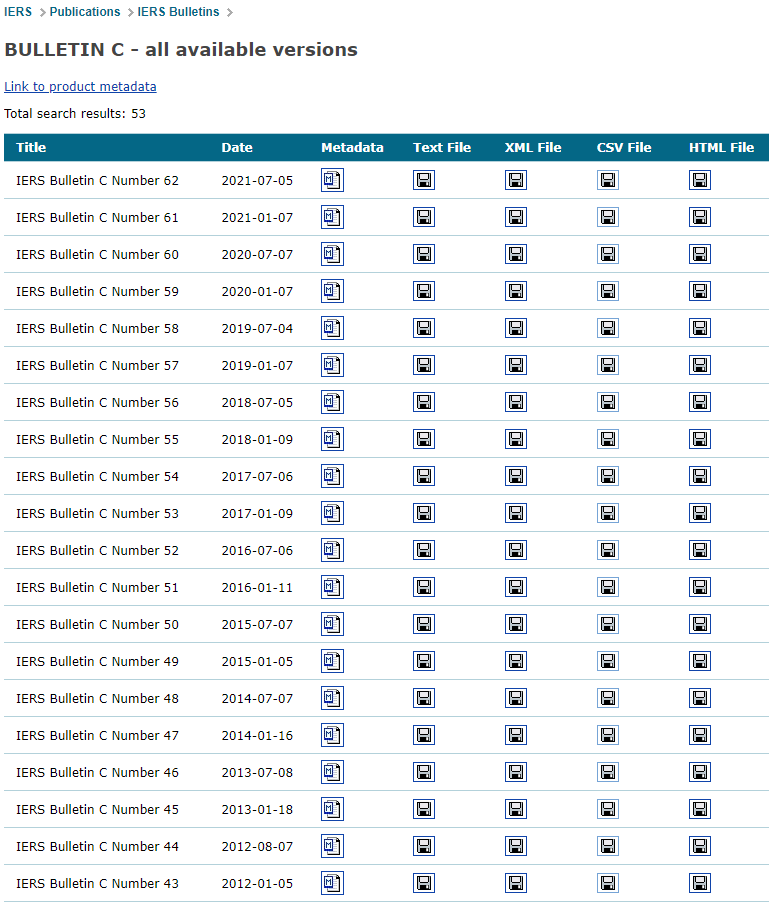

历史数据如下:



 Bulletin D

提供UT1-UTC的值,由于需要维护0.1s的精度,更新日期不定(irregular)。

最新信息如下:

  INTERNATIONAL   EARTH   ROTATION AND REFERENCE SYSTEMS  SERVICE   (IERS)
SERVICE INTERNATIONAL DE LA ROTATION  TERRESTRE ET DES SYSTEMES DE REFERENCE


SERVICE DE LA ROTATION TERRESTRE
OBSERVATOIRE DE PARIS
61, Av. de l'Observatoire
75014 PARIS (France)
Tel. 33 (0) 1 40 51 23 35
http://iers.obspm.fr
email: services.iers@obspm.fr                      Paris,  29 June 2021

                                                   Bulletin D 141




                               ANNOUNCEMENT OF DUT1


        From the

                          17 July 2021, 0h UTC

    until further notice, the value of DUT1 to be disseminated with the
    time signals will be


                                  DUT1 = -0.1 s


        Bulletin D 142 should be issued in September 2021



    To unsubscribe: http://hpiers.obspm.fr/eop-pc/products/bulletins/bulletin_registration.html

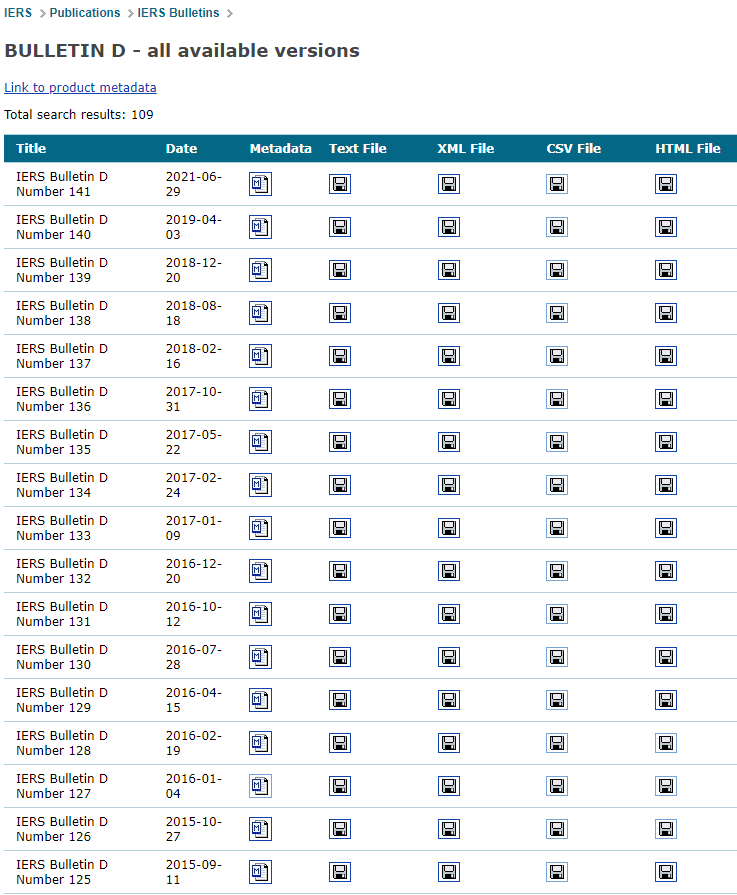

历史数据如下:



原文:https://blog.csdn.net/bear_miao/article/details/121461029

联系站长

QQ:769220720
