Jenkins使用笔记

2021-11-14
Admin

Jenkins

Name	Version
Linux	Cent OS 7
Jenkins	2.275-1.1
Java	1.8.0_292
Node.js	12.19
Nginx	1.16.0
Maven	3.8.1

一、Jenkins环境搭建

1. 安装Java

# 下载Java
yum install -y java

# 查看安装
[root@Mashiro /]# java -version
java version "1.8.0_281"
Java(TM) SE Runtime Environment (build 1.8.0_281-b09)
Java HotSpot(TM) 64-Bit Server VM (build 25.281-b09, mixed mode)
1
2
3
4
5
6
7
8

2. 安装Jenkins

# 前置插件[已安装可不执行此命令]
yum -y install wget

# 官网安装命令
wget -O /etc/yum.repos.d/jenkins.repo http://pkg.jenkins-ci.org/redhat/jenkins.repo
rpm --import https://jenkins-ci.org/redhat/jenkins-ci.org.key
yum install -y jenkins

# 使用清华大学镜像
wget https://mirrors.tuna.tsinghua.edu.cn/jenkins/redhat-stable/jenkins-2.249.3-1.1.noarch.rpm
yum install jenkins-2.249.3-1.1.noarch.rpm
1
2
3
4
5
6
7
8
9
10
11

3. 修改Jenkins配置文件

vim /etc/sysconfig/jenkins
1

JENKINS_HOME="/var/lib/jenkins"

JENKINS_PORT="8080"

JENKINS_USER="jenkins"
1
2
3
4
5

4. 启动Jenkins

service jenkins start/stop/restart
1

5. 访问Jenkins页面

5.1. 进入Jenkins登录页面

# 127.0.0.1 改为 自己的服务器地址
# 8080 为上面设置的 JENKINS_PORT
http://127.0.0.1:8080/
1
2
3

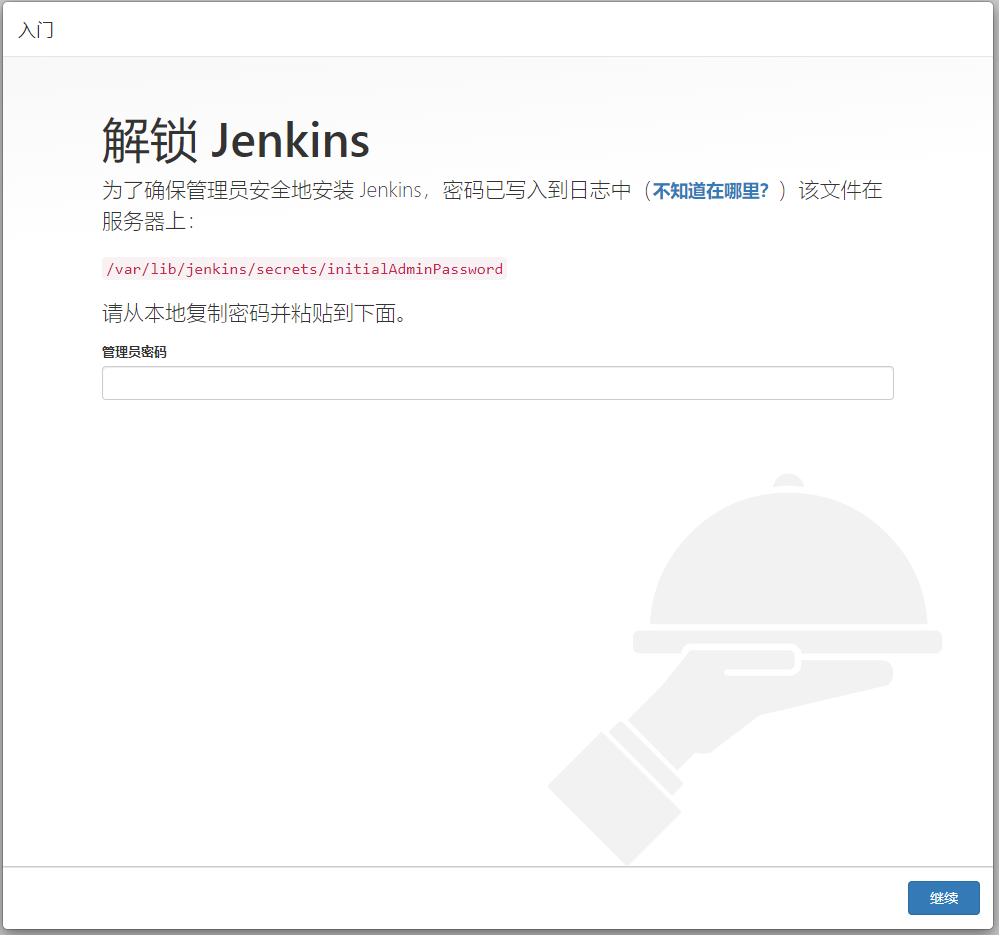

5.2. 获取登录密码

cat /var/lib/jenkins/secrets/initialAdminPassword
1

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-QhcSykJd-1636896546911)(password.png)]

6. 新手入门

6.1. 安装插件

这波啊这波是能自动绝不手动

6.2. 自动安装插件

6.3. 创建第一个管理员用户

输入要创建的帐号信息，然后保存并完成。
如果不创建账号，使用初始的admin账户也可以。

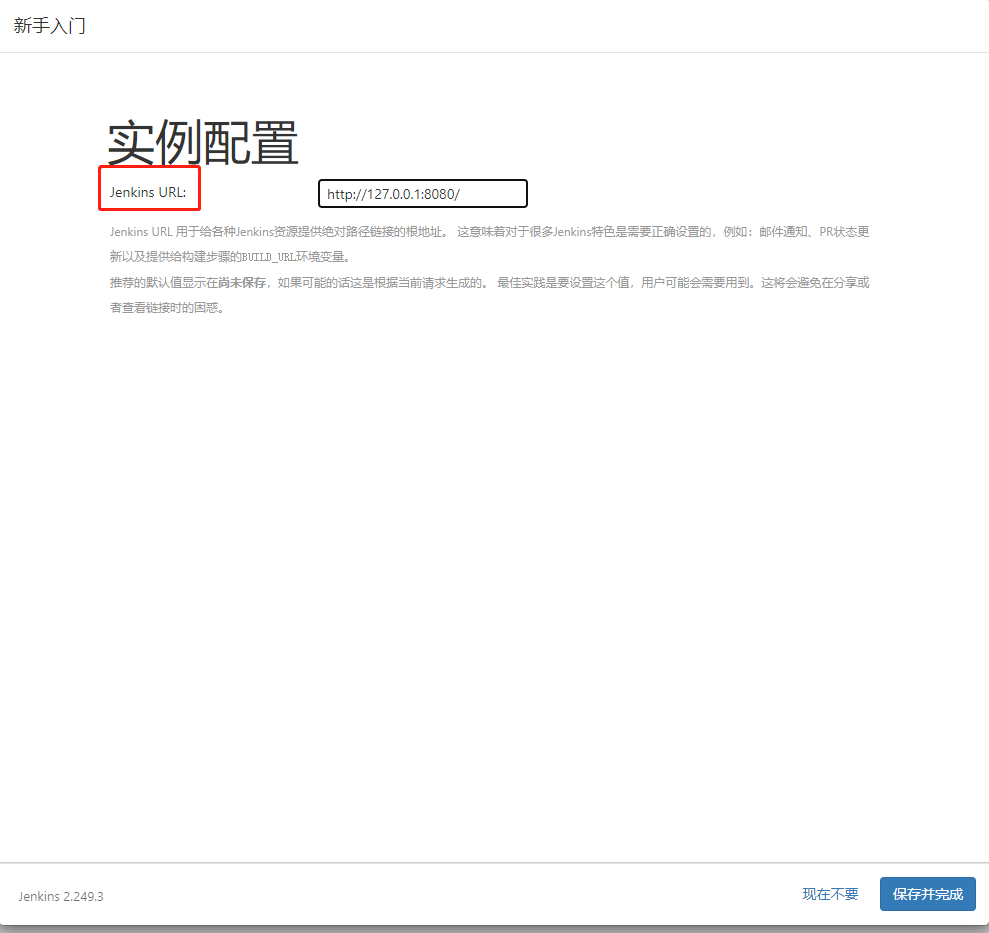

6.4. 修改Jenkins URL

Jenkins URL 是Jenkins的服务器地址+端口号一般默认就好

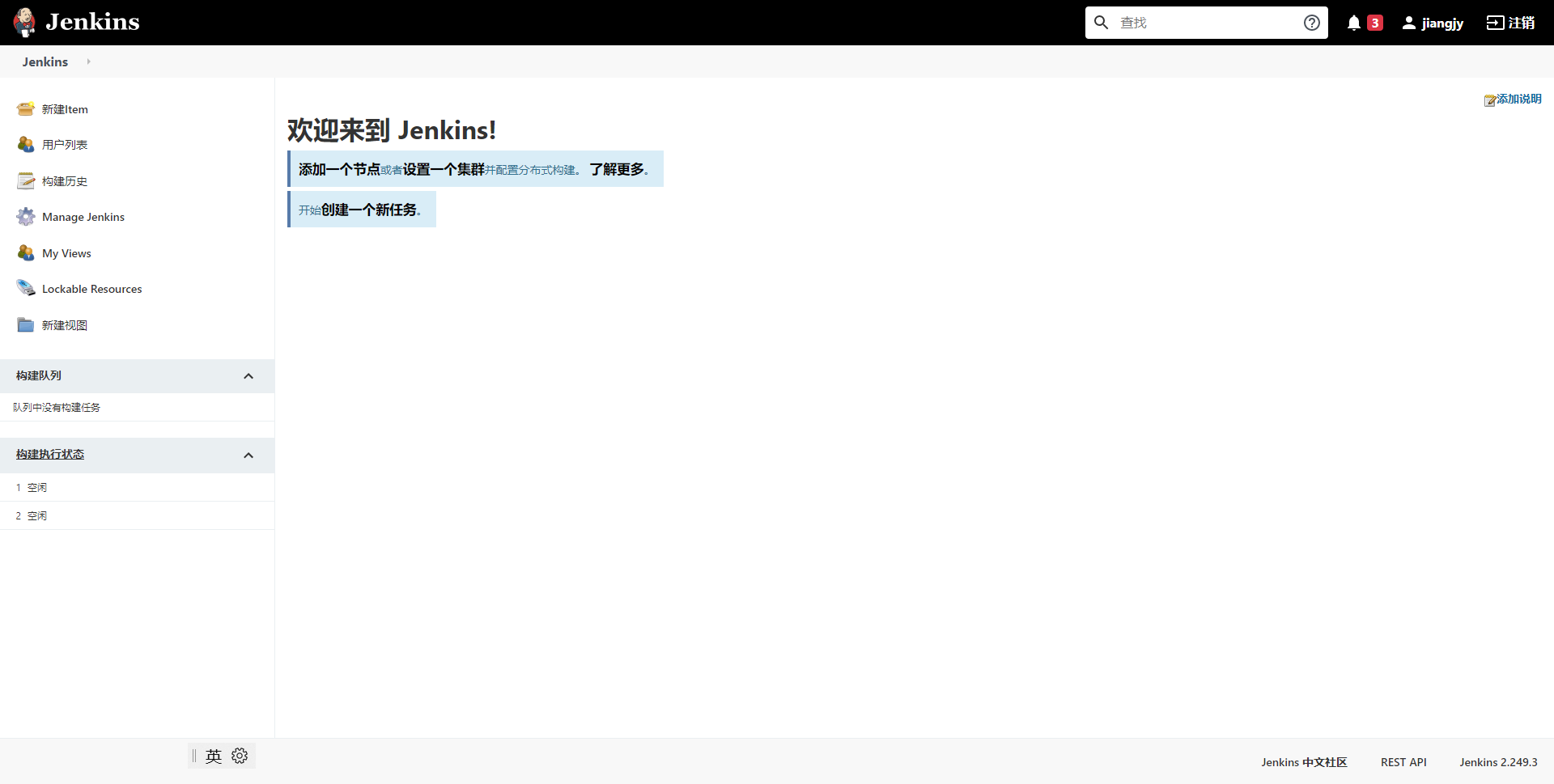

6.5. 搭建成功

二、Jenkins部署Spring Cloud 项目

1. 安装、配置所需要的插件

1.1. 下载Maven插件

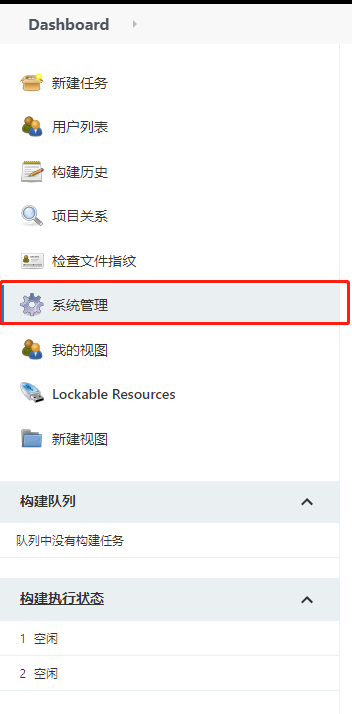

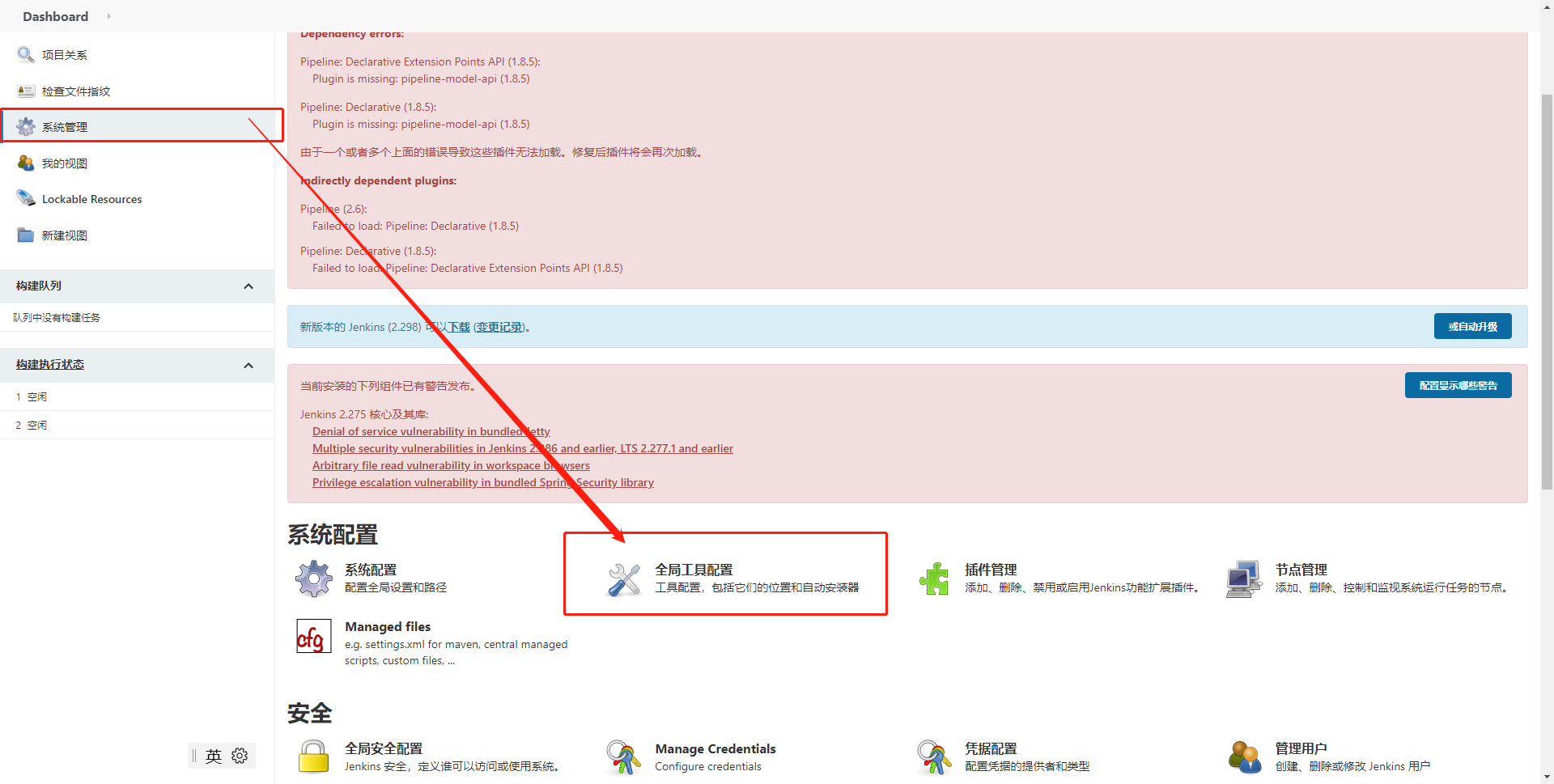

进入系统管理

选择Maven进行下载

1.2. 工具全局配置设置

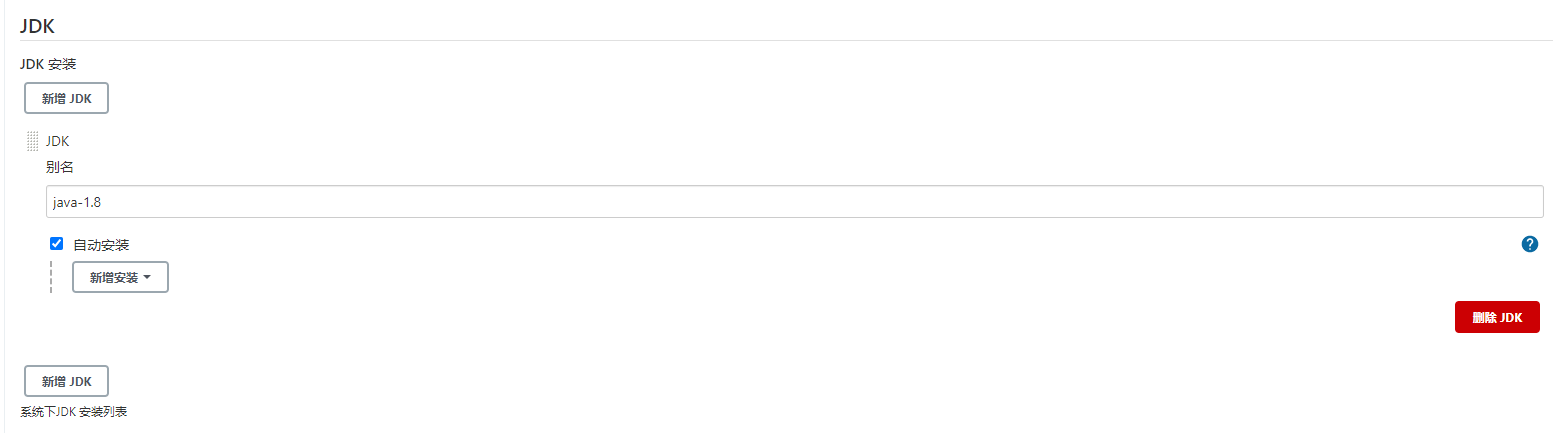

配置JDK (别名随便起自动安装)

配置Maven (NAME随便起自动安装)

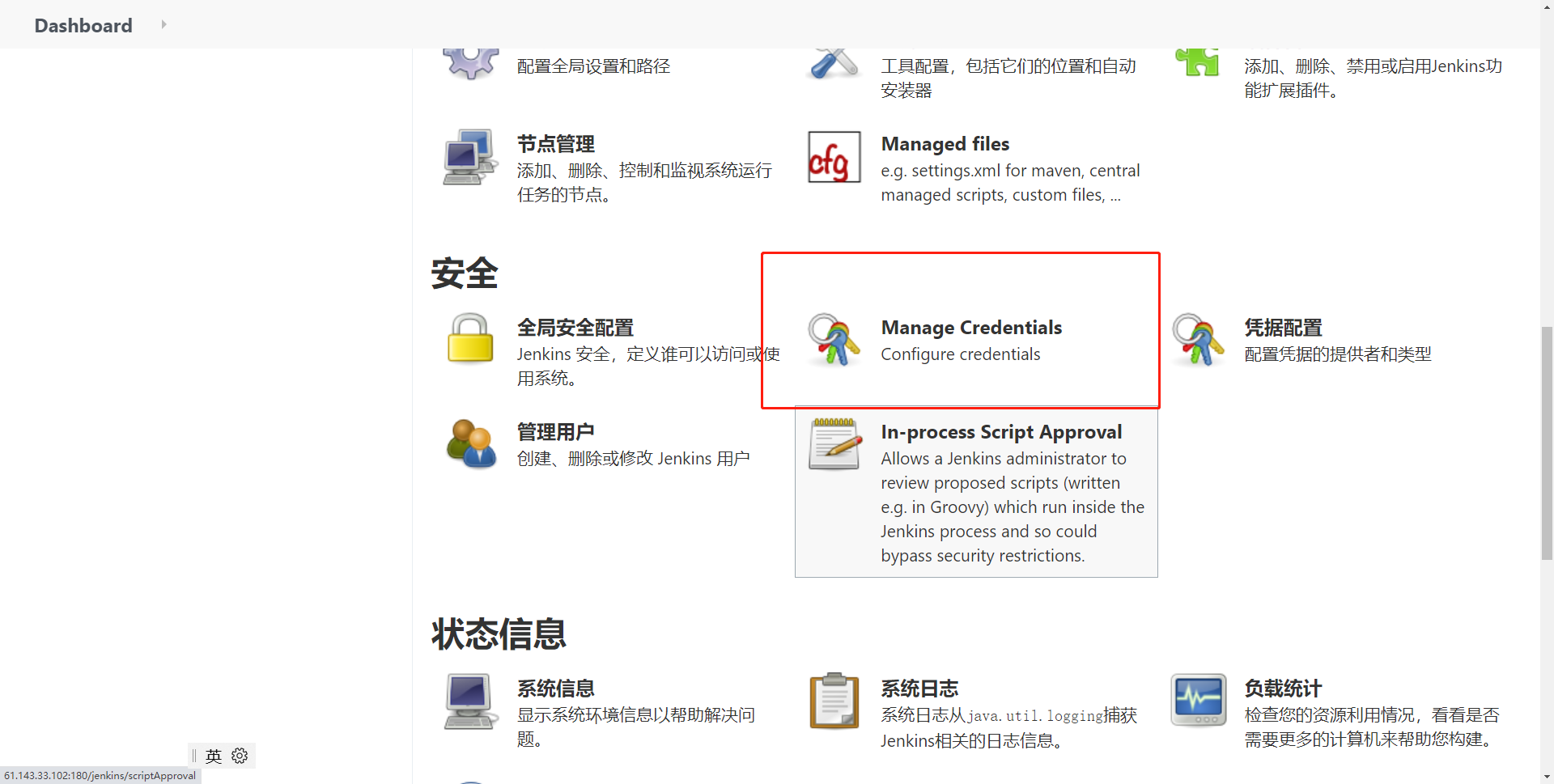

1.3. 设置全局Git凭据

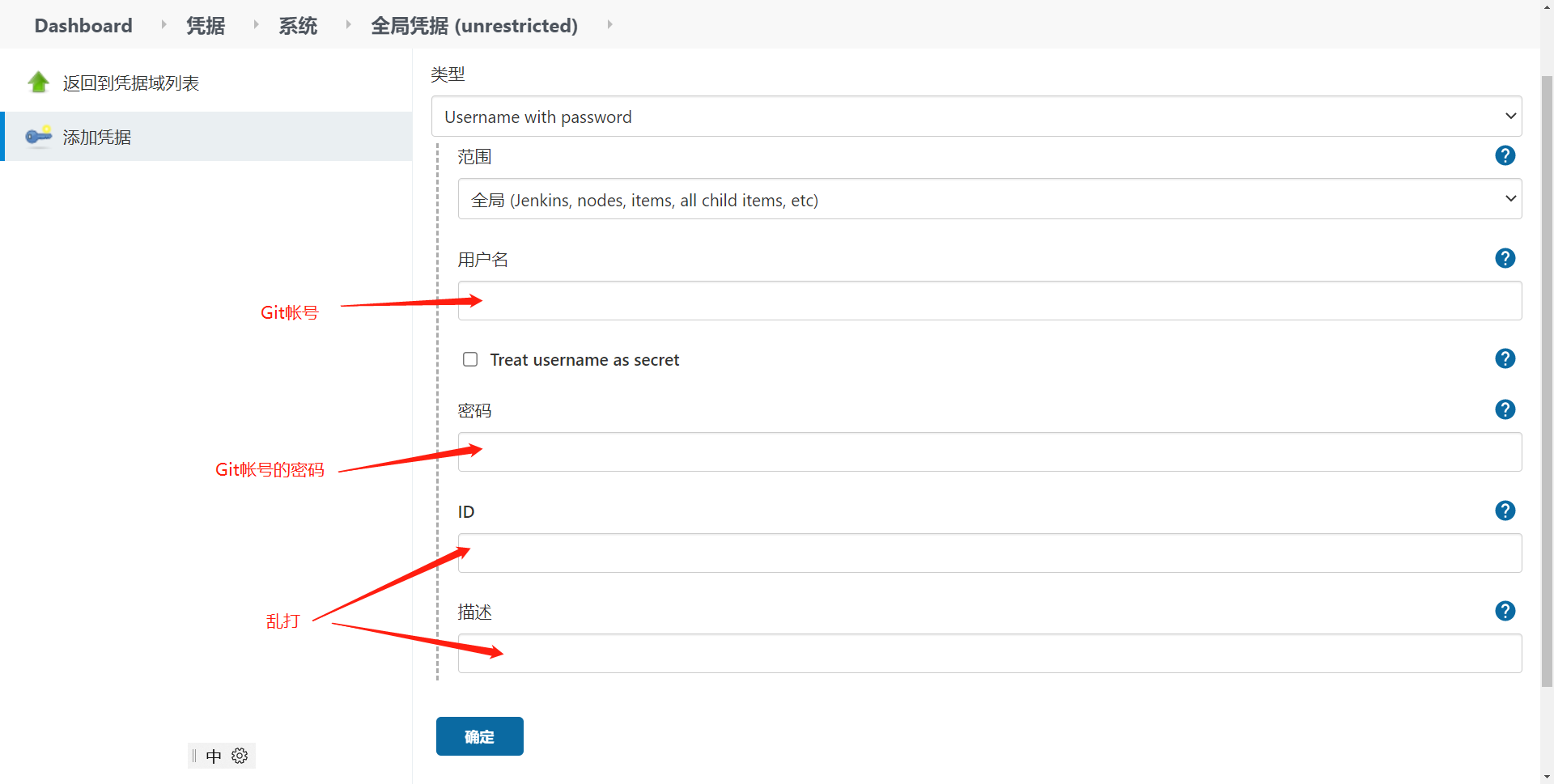

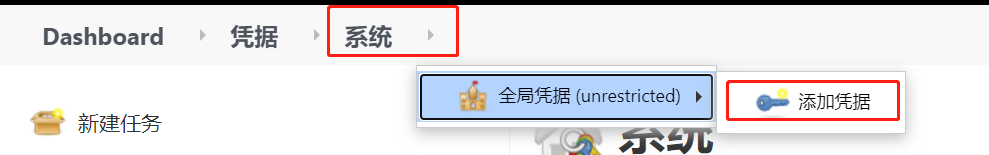

1.4. 添加凭据

2. 开始部署项目

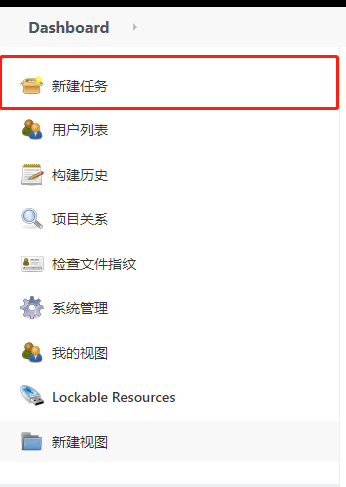

2.1. 新建任务

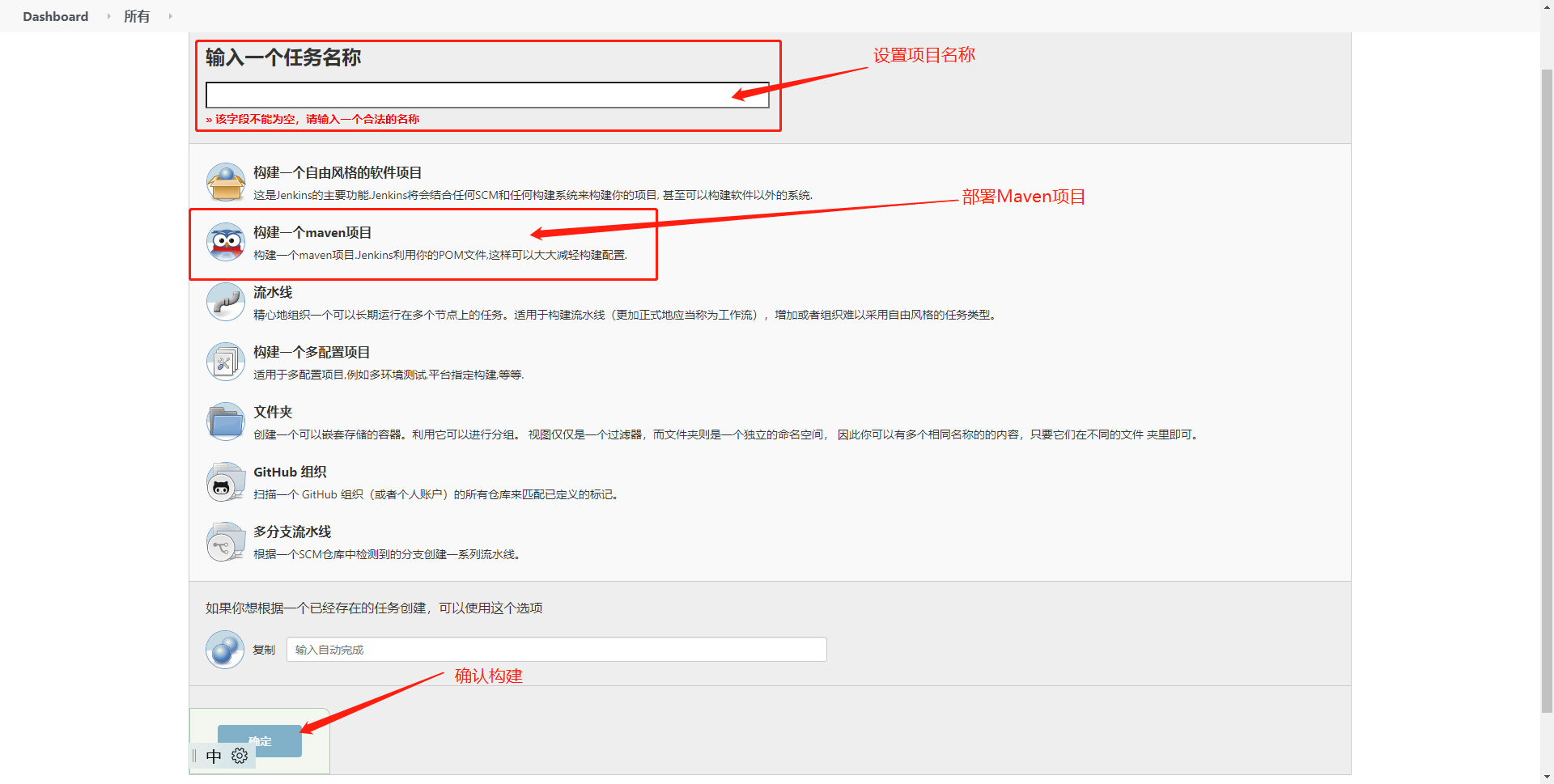

2.2. 构建部署Maven项目

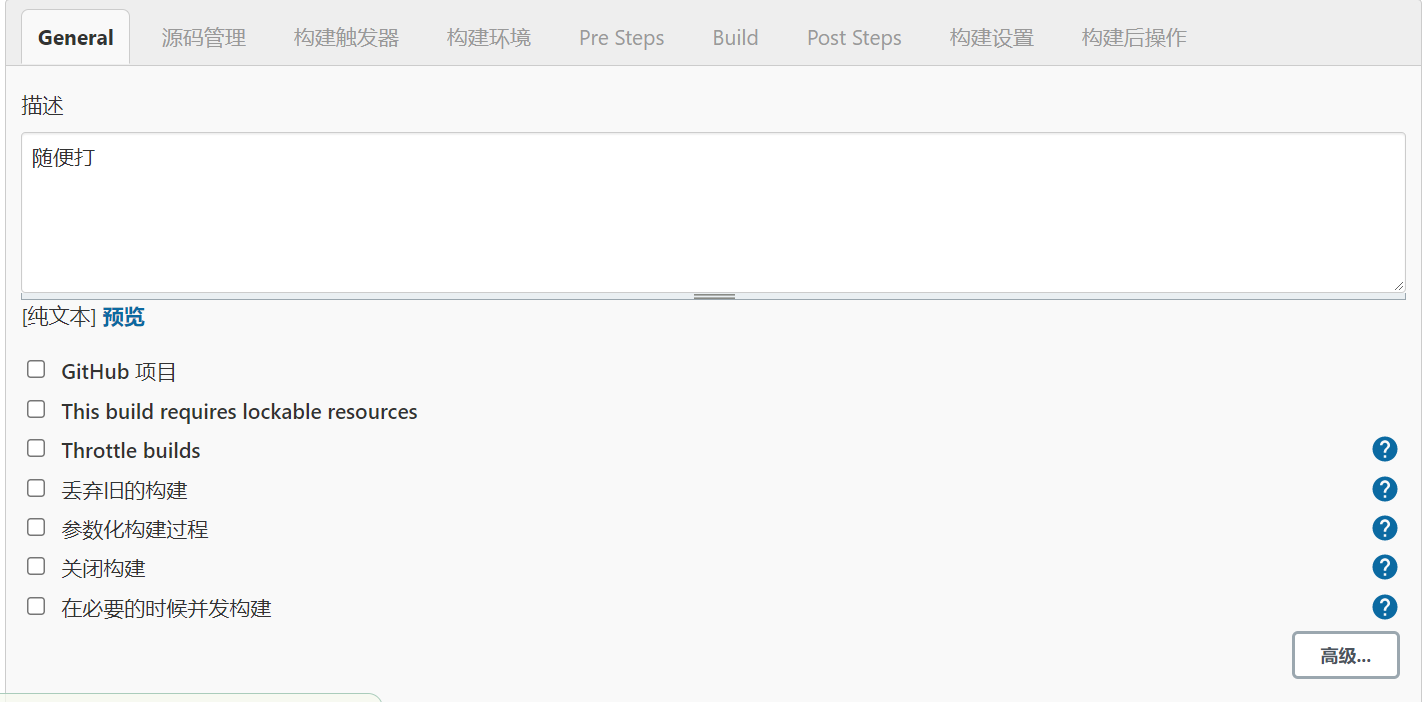

2.3. General

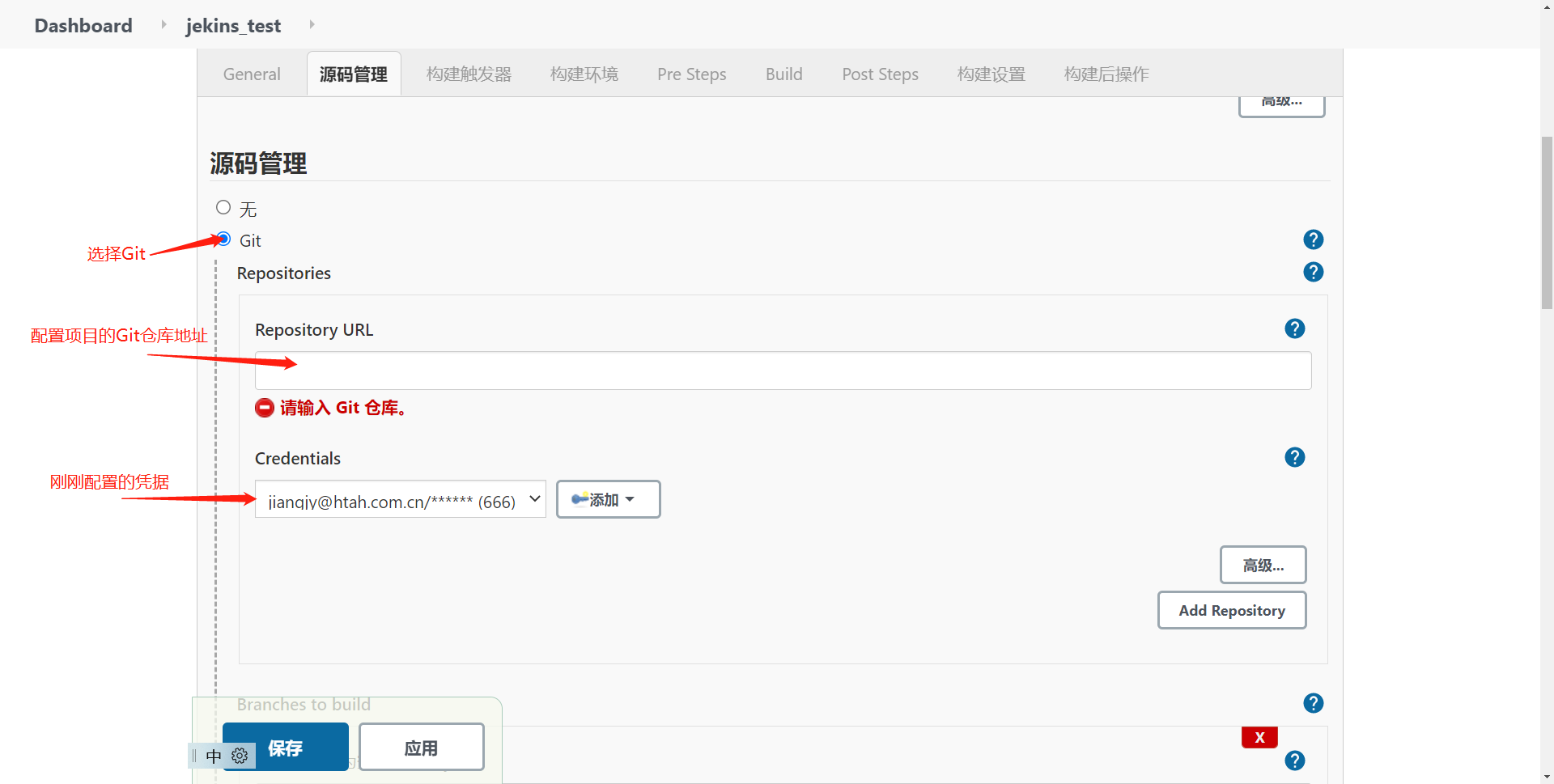

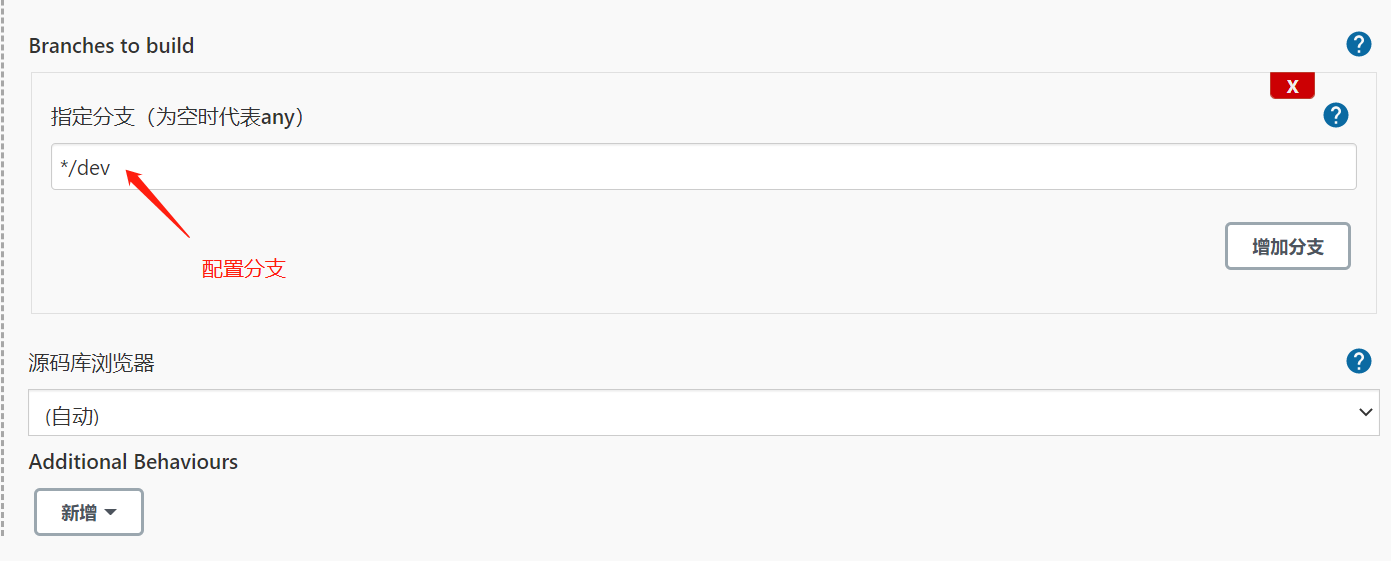

2.4. 源码管理

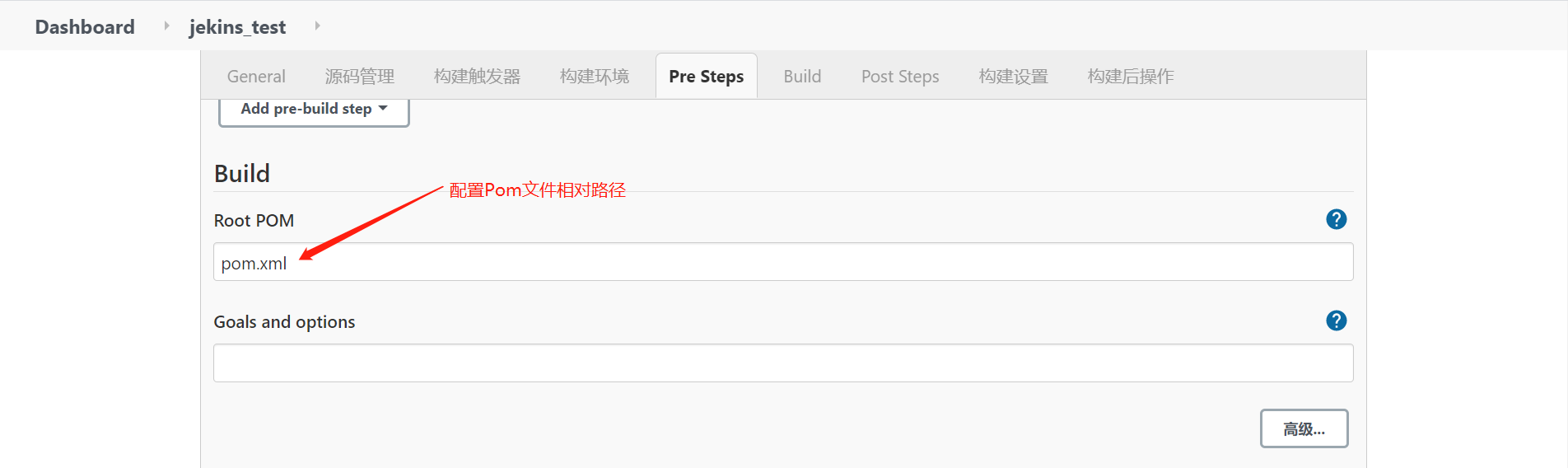

2.5. Build

2.6. Post Steps

2.7. 添加Shell 执行脚本

Shell 实例

#!/bin/bash
export BUILD_ID=dontKillMe

#Jenkins中编译好的jar位置
jar_path=/var/lib/jenkins/workspace/java-a/iap_play/iap-service/iap-system/iap-system-provider/target

#Jenkins中编译好的jar名称
jar_name=iap-system-provider-1.0.jar

#获取并杀掉以前的进程
ps aux|grep "iap-system-provider-1.0.jar"|grep -v grep|awk '{print $2}'|xargs kill -9

#进入指定的编译好的jar的位置
cd  ${jar_path}

#启动jar，后台启动
nohup java -jar ${jar_name} &

echo "启动成功"
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

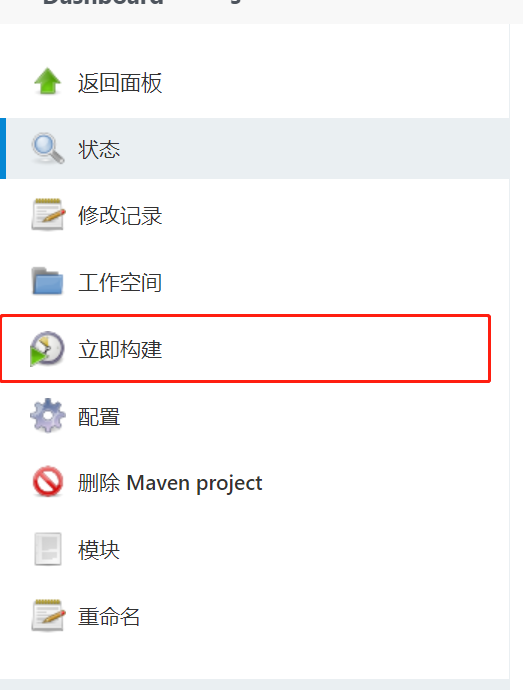

2.8. 开始构建

3. 扫雷

3.1. ERROR: Failed to parse POMs

Parsing POMsERROR: Failed to parse POMsorg.apache.maven.project.ProjectBuildingException: Some problems were encountered while processing the POMs:[FATAL] Non-resolvable parent POM for com.itl:iap:1.0: org.springframework.boot:spring-boot-starter-parent:pom:2.2.7.RELEASE failed to transfer from http://0.0.0.0/ during a previous attempt. This failure was cached in the local repository and resolution is not reattempted until the update interval of maven-default-http-blocker has elapsed or updates are forced. Original error: Could not transfer artifact org.springframework.boot:spring-boot-starter-parent:pom:2.2.7.RELEASE from/to maven-default-http-blocker (http://0.0.0.0/): Blocked mirror for repositories: [iap_nexus (http://xxx.xx.xx.xxx:xxxx/nexus/repository/maven-public/, default, releases+snapshots)] and 'parent.relativePath' points at wrong local POM @ line 6, column 13	at org.apache.maven.project.DefaultProjectBuilder.build(DefaultProjectBuilder.java:397)	at hudson.maven.MavenEmbedder.buildProjects(MavenEmbedder.java:370)	at hudson.maven.MavenEmbedder.readProjects(MavenEmbedder.java:340)	at hudson.maven.MavenModuleSetBuild$PomParser.invoke(MavenModuleSetBuild.java:1330)	at hudson.maven.MavenModuleSetBuild$PomParser.invoke(MavenModuleSetBuild.java:1124)	at hudson.FilePath.act(FilePath.java:1162)	at hudson.FilePath.act(FilePath.java:1145)	at hudson.maven.MavenModuleSetBuild$MavenModuleSetBuildExecution.parsePoms(MavenModuleSetBuild.java:985)	at hudson.maven.MavenModuleSetBuild$MavenModuleSetBuildExecution.doRun(MavenModuleSetBuild.java:689)	at hudson.model.AbstractBuild$AbstractBuildExecution.run(AbstractBuild.java:513)	at hudson.model.Run.execute(Run.java:1907)	at hudson.maven.MavenModuleSetBuild.run(MavenModuleSetBuild.java:543)	at hudson.model.ResourceController.execute(ResourceController.java:97)	at hudson.model.Executor.run(Executor.java:429)Finished: FAILURE
1

原因：项目中采用nexus私服，需要配置修改Jenkins组件中Maven的配置文件。
解决方法：

vim /var/lib/jenkins/tools/hudson.tasks.Maven_MavenInstallation/maven3.8.1/conf/settings.xml
1

<mirrors>        <mirror>        <id>iap_nexusid>        <name>IAP Nexusname>        <url>http://xxx.xx.xx.xxx:xxxx/nexus/repository/maven-public/url>        <mirrorOf>!internal.repo,*mirrorOf>    mirror>    <mirror>        <id>aliyunmavenid>        <mirrorOf>*mirrorOf>        <name>aliyunname>        <url>https://maven.aliyun.com/repository/publicurl>    mirror>mirrors>
1

3.2. FATAL: command execution failed

[java-a] $ mvn -f /var/lib/jenkins/workspace/java-a/java-a/iap_play/pom.xml clean installFATAL: command execution failedchannel stoppedjava.io.IOException: error=2, No such file or directory	at java.lang.UNIXProcess.forkAndExec(Native Method)	at java.lang.UNIXProcess.<init>(UNIXProcess.java:247)	at java.lang.ProcessImpl.start(ProcessImpl.java:134)	at java.lang.ProcessBuilder.start(ProcessBuilder.java:1029)Caused: java.io.IOException: Cannot run program "mvn" (in directory "/var/lib/jenkins/workspace/java-a"): error=2, No such file or directory	at java.lang.ProcessBuilder.start(ProcessBuilder.java:1048)	at hudson.Proc$LocalProc.<init>(Proc.java:252)	at hudson.Proc$LocalProc.<init>(Proc.java:221)	at hudson.Launcher$LocalLauncher.launch(Launcher.java:996)	at hudson.Launcher$ProcStarter.start(Launcher.java:508)	at hudson.Launcher$ProcStarter.join(Launcher.java:519)	at hudson.tasks.Maven.perform(Maven.java:368)	at hudson.tasks.BuildStepMonitor$1.perform(BuildStepMonitor.java:20)	at hudson.model.AbstractBuild$AbstractBuildExecution.perform(AbstractBuild.java:803)	at hudson.maven.MavenModuleSetBuild$MavenModuleSetBuildExecution.build(MavenModuleSetBuild.java:944)	at hudson.maven.MavenModuleSetBuild$MavenModuleSetBuildExecution.doRun(MavenModuleSetBuild.java:894)	at hudson.model.AbstractBuild$AbstractBuildExecution.run(AbstractBuild.java:513)	at hudson.model.Run.execute(Run.java:1907)	at hudson.maven.MavenModuleSetBuild.run(MavenModuleSetBuild.java:543)	at hudson.model.ResourceController.execute(ResourceController.java:97)	at hudson.model.Executor.run(Executor.java:429)Build step 'Invoke top-level Maven targets' marked build as failureFinished: FAILURE
1

原因：项目中采用nexus私服，需要配置修改Jenkins组件中Maven的配置文件。
解决方法：调整 Jenkins 配置中的 pom.xml 路径

3.3. No goals have been specified for this build.

[ERROR] No goals have been specified for this build. You must specify a valid lifecycle phase or a goal in the format <plugin-prefix>:<goal> or <plugin-group-id>:<plugin-artifact-id>[:<plugin-version>]:<goal>. Available lifecycle phases are: validate, initialize, generate-sources, process-sources, generate-resources, process-resources, compile, process-classes, generate-test-sources, process-test-sources, generate-test-resources, process-test-resources, test-compile, process-test-classes, test, prepare-package, package, pre-integration-test, integration-test, post-integration-test, verify, install, deploy, pre-clean, clean, post-clean, pre-site, site, post-site, site-deploy. -> [Help 1][ERROR] [ERROR] To see the full stack trace of the errors, re-run Maven with the -e switch.[ERROR] Re-run Maven using the -X switch to enable full debug logging.[ERROR] [ERROR] For more information about the errors and possible solutions, please read the following articles:[ERROR] [Help 1] http://cwiki.apache.org/confluence/display/MAVEN/NoGoalSpecifiedExceptionBuild step 'Invoke top-level Maven targets' marked build as failureFinished: FAILURE
1

原因： pom.xml 中缺少配置
解决方法：

    <build>        <pluginManagement>            <plugins>                <plugin>                    <groupId>org.apache.maven.pluginsgroupId>                    <artifactId>maven-compiler-pluginartifactId>                    <version>3.8.1version>                plugin>                <plugin>                    <groupId>org.sonarsource.scanner.mavengroupId>                    <artifactId>sonar-maven-pluginartifactId>                    <version>3.6.0.1398version>                plugin>                <plugin>                    <groupId>org.jacocogroupId>                    <artifactId>jacoco-maven-pluginartifactId>                    <version>0.8.6version>                plugin>            plugins>        pluginManagement>                <defaultGoal>compiledefaultGoal>    build>
1

3.4. Jenkins 用户权限问题

vim /etc/sysconfig/jenkisn# 配置修改JENKINS_USER="root"JENKINS_GROUP="root"
1

三、Jenkins 部署 Vue

1. 安装 NodeJS

在Jenkins页面的插件管理中下载 Node.js 插件

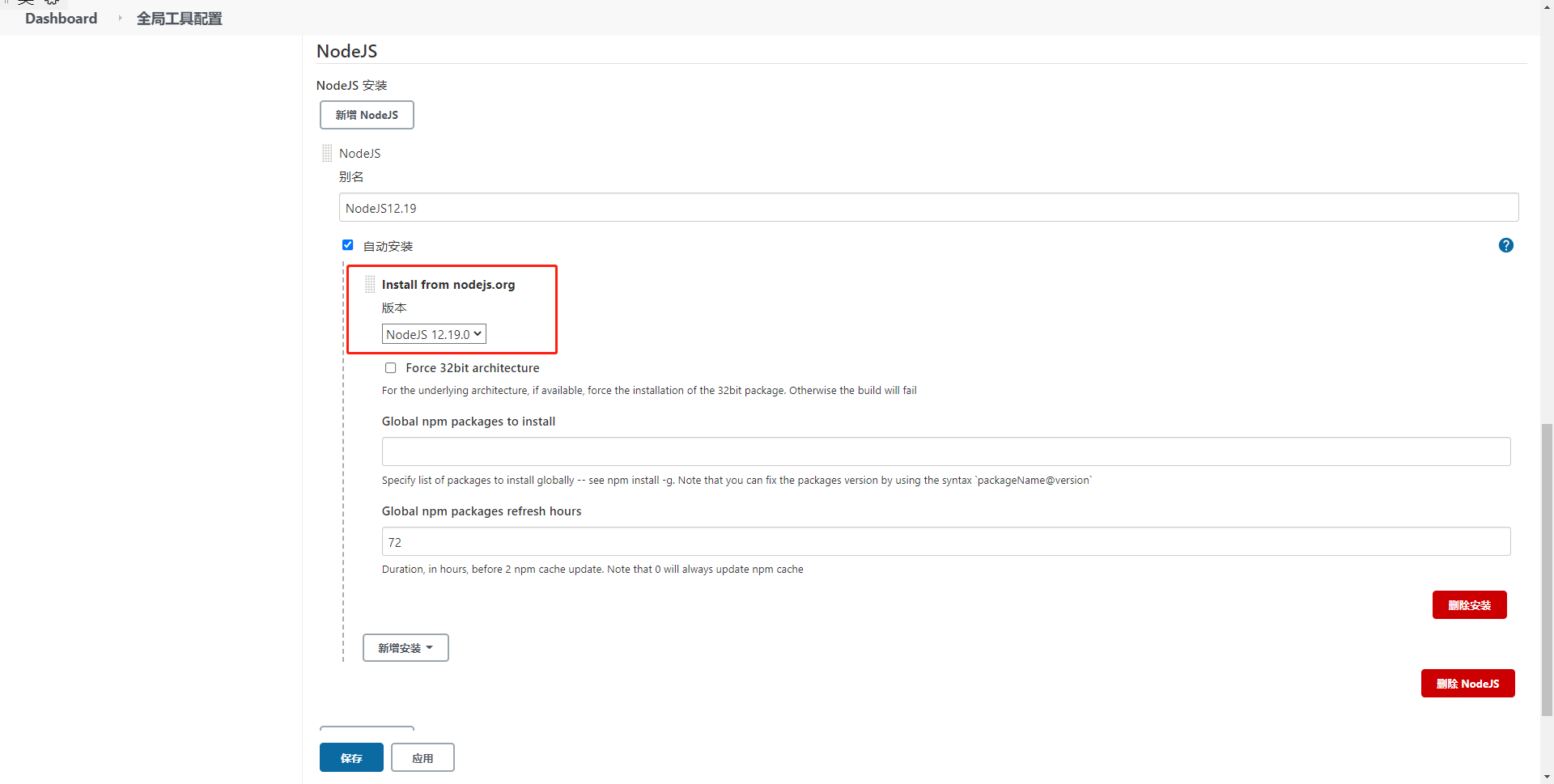

2. NodeJS全局工具配置

Tips: Node.js 推荐下载稳定的 12.xx 版本

3. 构建部署Vue项目

3.1. 新建任务

3.2. Greneral、源码管理步骤与构建Spring Cloud项目一样

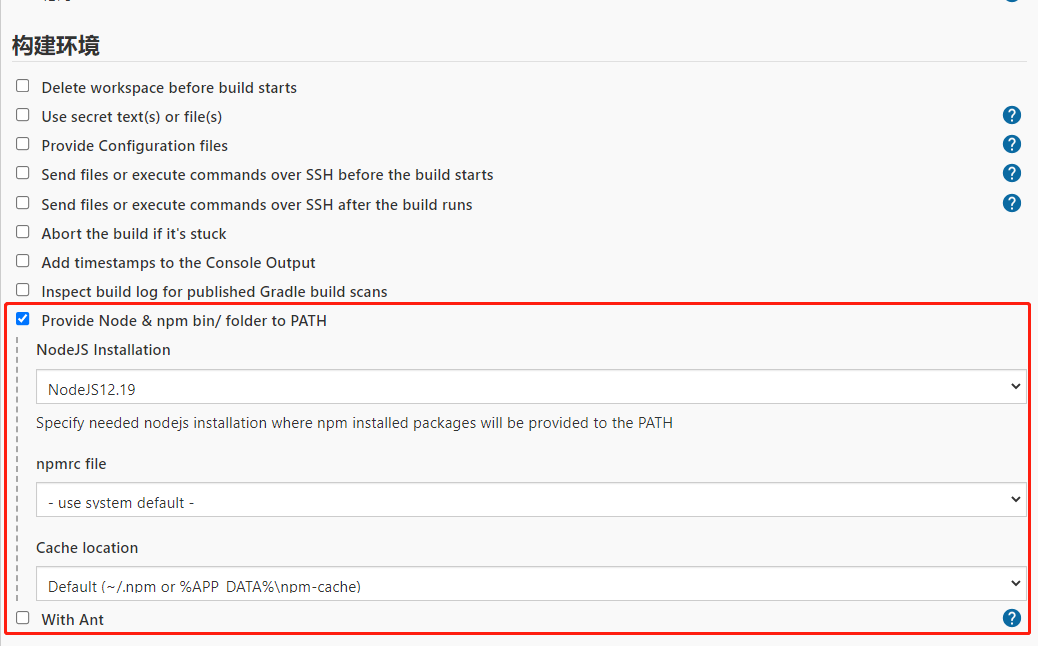

3.3. 环境构建

构建环境选择Node & npm

3.4. 构建执行Shell

# 进入Jenkins项目工程下cd /var/lib/jenkins/workspace/web-a-1# 配置淘宝源npm config set registry http://registry.npm.taobao.org# 下载、打包npm installnpm run build:prod# 移除旧项目，打包新项目rm -rf web-a-1.tar.gztar -zcvf web-a-1.tar.gz *
1

4. 扫雷

4.1. npm ERR!

npm WARN deprecated core-js@2.6.12: core-js@<3.3 is no longer maintained and not recommended for usage due to the number of issues. Because of the V8 engine whims, feature detection in old core-js versions could cause a slowdown up to 100x even if nothing is polyfilled. Please, upgrade your dependencies to the actual version of core-js.npm ERR! code 1npm ERR! path /var/lib/jenkins/workspace/web-a-1/node_modules/deasyncnpm ERR! command failednpm ERR! command sh -c node ./build.jsnpm ERR! make: Entering directory `/var/lib/jenkins/workspace/web-a-1/node_modules/deasync/build'npm ERR!   CXX(target) Release/obj.target/deasync/src/deasync.onpm ERR! make: Leaving directory `/var/lib/jenkins/workspace/web-a-1/node_modules/deasync/build'npm ERR! gyp info it worked if it ends with oknpm ERR! gyp info using node-gyp@7.1.2npm ERR! gyp info using node@16.3.0 | linux | x64npm ERR! gyp info find Python using Python version 2.7.5 found at "/bin/python"npm ERR! gyp http GET https://nodejs.org/download/release/v16.3.0/node-v16.3.0-headers.tar.gznpm ERR! gyp http 200 https://nodejs.org/download/release/v16.3.0/node-v16.3.0-headers.tar.gznpm ERR! gyp http GET https://nodejs.org/download/release/v16.3.0/SHASUMS256.txtnpm ERR! gyp http 200 https://nodejs.org/download/release/v16.3.0/SHASUMS256.txtnpm ERR! (node:78268) [DEP0150] DeprecationWarning: Setting process.config is deprecated. In the future the property will be read-only.npm ERR! (Use `node --trace-deprecation ...` to show where the warning was created)npm ERR! gyp info spawn /bin/pythonnpm ERR! gyp info spawn args [npm ERR! gyp info spawn args   '/var/lib/jenkins/tools/jenkins.plugins.nodejs.tools.NodeJSInstallation/Node_JS_16.3.0/lib/node_modules/npm/node_modules/node-gyp/gyp/gyp_main.py',npm ERR! gyp info spawn args   'binding.gyp',npm ERR! gyp info spawn args   '-f',npm ERR! gyp info spawn args   'make',npm ERR! gyp info spawn args   '-I',npm ERR! gyp info spawn args   '/var/lib/jenkins/workspace/web-a-1/node_modules/deasync/build/config.gypi',npm ERR! gyp info spawn args   '-I',npm ERR! gyp info spawn args   '/var/lib/jenkins/tools/jenkins.plugins.nodejs.tools.NodeJSInstallation/Node_JS_16.3.0/lib/node_modules/npm/node_modules/node-gyp/addon.gypi',npm ERR! gyp info spawn args   '-I',npm ERR! gyp info spawn args   '/root/.cache/node-gyp/16.3.0/include/node/common.gypi',npm ERR! gyp info spawn args   '-Dlibrary=shared_library',npm ERR! gyp info spawn args   '-Dvisibility=default',npm ERR! gyp info spawn args   '-Dnode_root_dir=/root/.cache/node-gyp/16.3.0',npm ERR! gyp info spawn args   '-Dnode_gyp_dir=/var/lib/jenkins/tools/jenkins.plugins.nodejs.tools.NodeJSInstallation/Node_JS_16.3.0/lib/node_modules/npm/node_modules/node-gyp',npm ERR! gyp info spawn args   '-Dnode_lib_file=/root/.cache/node-gyp/16.3.0/<(target_arch)/node.lib',npm ERR! gyp info spawn args   '-Dmodule_root_dir=/var/lib/jenkins/workspace/web-a-1/node_modules/deasync',npm ERR! gyp info spawn args   '-Dnode_engine=v8',npm ERR! gyp info spawn args   '--depth=.',npm ERR! gyp info spawn args   '--no-parallel',npm ERR! gyp info spawn args   '--generator-output',npm ERR! gyp info spawn args   'build',npm ERR! gyp info spawn args   '-Goutput_dir=.'npm ERR! gyp info spawn args ]npm ERR! gyp info spawn makenpm ERR! gyp info spawn args [ 'BUILDTYPE=Release', '-C', 'build' ]npm ERR! make: g++: Command not foundnpm ERR! make: *** [Release/obj.target/deasync/src/deasync.o] Error 127npm ERR! gyp ERR! build error npm ERR! gyp ERR! stack Error: `make` failed with exit code: 2npm ERR! gyp ERR! stack     at ChildProcess.onExit (/var/lib/jenkins/tools/jenkins.plugins.nodejs.tools.NodeJSInstallation/Node_JS_16.3.0/lib/node_modules/npm/node_modules/node-gyp/lib/build.js:194:23)npm ERR! gyp ERR! stack     at ChildProcess.emit (node:events:394:28)npm ERR! gyp ERR! stack     at Process.ChildProcess._handle.onexit (node:internal/child_process:290:12)npm ERR! gyp ERR! System Linux 3.10.0-1160.el7.x86_64npm ERR! gyp ERR! command "/var/lib/jenkins/tools/jenkins.plugins.nodejs.tools.NodeJSInstallation/Node_JS_16.3.0/bin/node" "/var/lib/jenkins/tools/jenkins.plugins.nodejs.tools.NodeJSInstallation/Node_JS_16.3.0/lib/node_modules/npm/node_modules/node-gyp/bin/node-gyp.js" "rebuild"npm ERR! gyp ERR! cwd /var/lib/jenkins/workspace/web-a-1/node_modules/deasyncnpm ERR! gyp ERR! node -v v16.3.0npm ERR! gyp ERR! node-gyp -v v7.1.2npm ERR! gyp ERR! not ok npm ERR! Build failednpm ERR! A complete log of this run can be found in:npm ERR!     /root/.npm/_logs/2021-06-22T06_50_05_035Z-debug.logBuild step 'Execute shell' marked build as failureFinished: FAILURE
1

原因：未知
解决办法：因此时使用的Node版本为16.x，改用12.x后，install成功。

4.2. workspace/wxsweb: No such file or directory

[web-a-1] $ /bin/sh -xe /tmp/jenkins6674175746436472177.sh+ cd /var/jenkins_home/workspace/wxsweb/tmp/jenkins6674175746436472177.sh: line 2: cd: /var/jenkins_home/workspace/wxsweb: No such file or directoryBuild step 'Execute shell' marked build as failureFinished: FAILURE
1

原因：找不到/var/jenkins_home/workspace/wxsweb
解决办法：安装webpack

npm install webpack -g
1

4.3. ERROR Error: Cannot find module ‘webpack/package.json’

+ npm run build:prod -config package.json> vue-admin-template@4.4.0 build:prod /var/lib/jenkins/workspace/web-a-1> vue-cli-service build "package.json"-  Building for production... ERROR  Error: Cannot find module 'webpack/package.json'Require stack:- /var/lib/jenkins/workspace/web-a-1/node_modules/html-webpack-plugin/lib/chunksorter.js- /var/lib/jenkins/workspace/web-a-1/node_modules/@vue/cli-service/lib/config/app.js- /var/lib/jenkins/workspace/web-a-1/node_modules/@vue/cli-service/lib/Service.js- /var/lib/jenkins/workspace/web-a-1/node_modules/@vue/cli-service/bin/vue-cli-service.jsError: Cannot find module 'webpack/package.json'Require stack:- /var/lib/jenkins/workspace/web-a-1/node_modules/html-webpack-plugin/lib/chunksorter.js- /var/lib/jenkins/workspace/web-a-1/node_modules/@vue/cli-service/lib/config/app.js- /var/lib/jenkins/workspace/web-a-1/node_modules/@vue/cli-service/lib/Service.js- /var/lib/jenkins/workspace/web-a-1/node_modules/@vue/cli-service/bin/vue-cli-service.js    at Function.Module._resolveFilename (internal/modules/cjs/loader.js:831:15)    at Function.Module._load (internal/modules/cjs/loader.js:687:27)    at Module.require (internal/modules/cjs/loader.js:903:19)    at require (internal/modules/cjs/helpers.js:74:18)    at Object.<anonymous> (/var/lib/jenkins/workspace/web-a-1/node_modules/html-webpack-plugin/lib/chunksorter.js:137:12)    at Module._compile (internal/modules/cjs/loader.js:1015:30)    at Object.Module._extensions..js (internal/modules/cjs/loader.js:1035:10)    at Module.load (internal/modules/cjs/loader.js:879:32)    at Function.Module._load (internal/modules/cjs/loader.js:724:14)    at Module.require (internal/modules/cjs/loader.js:903:19)npm ERR! code ELIFECYCLEnpm ERR! errno 1npm ERR! vue-admin-template@4.4.0 build:prod: `vue-cli-service build "package.json"`npm ERR! Exit status 1npm ERR! npm ERR! Failed at the vue-admin-template@4.4.0 build:prod script.npm ERR! This is probably not a problem with npm. There is likely additional logging output above.npm ERR! A complete log of this run can be found in:npm ERR!     /root/.npm/_logs/2021-06-22T10_58_44_251Z-debug.logBuild step 'Execute shell' marked build as failureFinished: FAILURE
1

原因：未知
解决方法

# 移除项目中的 node_modules,package-lock.json rm -rf node_modules/rm package-lock.json # 清楚缓存npm cache clean# 打包下载npm installnpm run build:prod# 一套之后，打包也行了，自动构建也行了# Finished: SUCCESS
1

四、Nginx 代理 Jenkins

1. 下载Nginx

# 创建存放Nginx的目录 并 进入mkdir /usr/nginxcd /usr/nginx# 检查下载Gccgcc -vyum -y install gcc# Nginx三个前置依赖yum install -y pcre pcre-develyum install -y zlib zlib-develyum install -y openssl openssl-devel# 下载Nginx的tar包wget http://nginx.org/download/nginx-1.16.0.tar.gz  tar -zxvf  nginx-1.16.0.tar.gz# 三行命令执行编译下载./configure make make install# 进入Nginx目录cd /usr/local/nginx/	# 启动运行Nginx./nginx  # 启动Nginx./nginx -s reload	# 重启Nginx
1

2. 修改Jenkins配置

vim /etc/sysconfig/jenkisn# 增加JENKINS_ARGS="--prefix=/jenkins"
1

3. 修改Nginx配置

vim /usr/local/nginx/conf/nginx.conf
1

server {        listen       180;	# 监听的端口        server_name  localhost;		# 服务地址        location /jenkins {		            proxy_pass http://localhost:8080/jenkins;	# 代理Jenkins        }}
1

4. 重启Nginx

[root@ly01 sbin]# pwd/usr/local/nginx/sbin[root@ly01 sbin]# lsnginx[root@ly01 sbin]# ./nginx -s reload
1

5. 测试访问

http:// ${server_name}:$ {listen}/jenkins
