1. JAXB - Java Architecturefor XML Binding - 面向XML绑定的Java体系结构

 

1.1 注解

// 1. 需要解析什么访问权限的javaBean字段 == 如果是私有字段，类上必须加上此注解
@XmlAccessorType(XmlAccessType.FIELD)

// 2. 使用什么标签名包裹该类的全部属性
@XmlRootElement(name="student")

// 3. 该类的属性字段的值需要什么标签进行包裹
@XmlElement(name="name",required = true)

// 4. 属性字段是容器对象如Collection，需要什么标签包裹该字段遍历的元素
@XmlElementWrapper(name = "students")
@XmlElement(name="name")  // 遍历的每个JavaBean的属性值由该 定义的标签进行包裹

// 5. 可以迭代容器字段
@XmlAnyElement

// 4. 定义属性字段序列化、反序列化的顺序
@XmlType(propOrder = {"id", "name"})

//在XmlRootElement根这个节点添加属性
@XmlAttribute(name = "xx", required = true)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

 

1.2 使用

Student.java

@Data
@NoArgsConstructor
@AllArgsConstructor
@XmlAccessorType(XmlAccessType.FIELD)   //定义xml序列化的字段类型
@XmlRootElement(name="student")    //定义xml中跟属性
public class Student {

    //xml属性映射
    @XmlElement(name="name",required = true)
    private String name;

    @XmlElement(name="year",required = true)
    private Integer year;

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

 
 

student.xml

<?xml version="1.0"?>
<student>
    <name>lrc</name>
    <year>22</year>
</student>
1
2
3
4
5

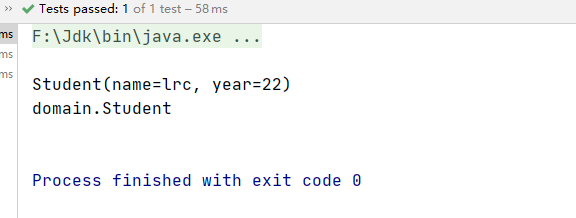

测试1 - 反序列化xml文件成JavaBean对象

    @Test
    public void test1() throws Exception {
        Class clazz = Student.class;

        //实参中包含需要解析的类
        JAXBContext jaxbContext = JAXBContext.newInstance(clazz);

        //xml文件解析成JavaBean对象器
        Unmarshaller unmarshaller = jaxbContext.createUnmarshaller();

        //序列化
        File file = new File("C:\\Users\\Administrator\\Desktop\\student.xml");
        Object student = unmarshaller.unmarshal(file);


        System.out.println(student);
        System.out.println(student.getClass().getName());
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

 
 

测试2 - 序列化普通JavaBean对象

	@Test
    public void test2() throws JAXBException {

        Class clazz = Student.class;

        //实参中包含需要解析的类
        JAXBContext jaxbContext = JAXBContext.newInstance(clazz);

        //javaBean序列化xml文件器
        Marshaller marshaller = jaxbContext.createMarshaller();
        //是否格式化xml文件
        marshaller.setProperty(Marshaller.JAXB_FORMATTED_OUTPUT,true);

        //序列化
        Student student = new Student("lcj", 25);
        marshaller.marshal(student, new File("C:\\Users\\Administrator\\Desktop\\student2.xml"));

    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

 
 

测试3 - 序列化JavaBean对象字段中含有容器Collection -> xml字符串

Student.java

@Data
@NoArgsConstructor
@AllArgsConstructor
@EqualsAndHashCode(callSuper = true)
@ToString(callSuper = true)
@XmlAccessorType(XmlAccessType.FIELD)
@XmlRootElement(name="studentxx")
public class Student extends BaseDomain implements Play{

    @XmlElement(name="name",required = true)
    private String name;

    @XmlElement(name="year",required = true)
    private Integer year;

    @Override
    public void play() {
        System.out.println(name + "：正在玩游戏");
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

 

Teacher.java

@Data
@NoArgsConstructor
@AllArgsConstructor
@XmlRootElement(name = "teacher")
@XmlAccessorType(XmlAccessType.FIELD)
public class Teacher {

    @XmlElement(name = "teacherName")
    String name;

    @XmlElement(name = "teacherSubject")
    String subject;

    @XmlElementWrapper(name = "students") //将该字段的内容写在节点里面
    @XmlElement(name = "student")  //指定每个Student对象的父标签，并且Student的@XmlRootElement属性失效
    List<Student> students;

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

 

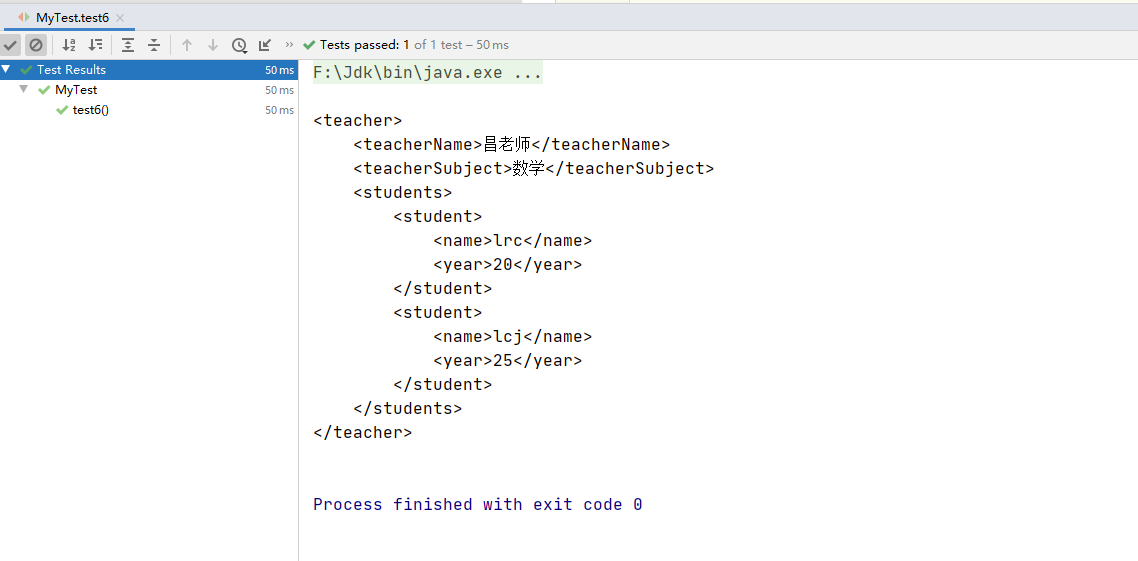

测试JavaBean中含有容器字段

    @Test
    public void test6() throws JAXBException {
        //1. 序列化的对象
        List<Student> students = new ArrayList<>();
        students.add(new Student("lrc", 20));
        students.add(new Student("lcj", 25));
        Teacher teacher = new Teacher("昌老师", "数学", students);

        JAXBContext jaxbContext = JAXBContext.newInstance(Teacher.class);

        // 2. xml序列化器
        Marshaller marshaller = jaxbContext.createMarshaller();
        //序列化后的xml是否需要格式化输出
        marshaller.setProperty(Marshaller.JAXB_FORMATTED_OUTPUT, true);
        //取消这个标签的显示
        marshaller.setProperty(Marshaller.JAXB_FRAGMENT,true);
        //编码格式
        marshaller.setProperty(Marshaller.JAXB_ENCODING,"utf-8");

        // 3. 序列化
        StringWriter sw = new StringWriter();
        marshaller.marshal(teacher, sw);

        //4.打印
        System.out.println(sw.toString());

    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

 
 

测试4 - 序列化容器对象

   @Test
    public void test7() throws JAXBException {

        //必须使用包装类 - 否则输出不了任何东西
        List<Student> students = new ArrayList<>();
        students.add(new Student("lrc", 20));
        students.add(new Student("lcj", 25));


        QName tagName = new QName("myStudents");
        JAXBElement<ListWrapper> jaxbElement = new JAXBElement<>(tagName, ListWrapper.class, new ListWrapper(students));

        //生成xml上下文 - 定义解析的类型
        JAXBContext jaxbContext = JAXBContext.newInstance(Student.class, ListWrapper.class);

        // 2. xml序列化器
        Marshaller marshaller = jaxbContext.createMarshaller();
        marshaller.setProperty(Marshaller.JAXB_FORMATTED_OUTPUT, true);

        // 3. 序列化
        StringWriter sw = new StringWriter();
        marshaller.marshal(jaxbElement, sw);

        //4.打印
        System.out.println(sw.toString());

    }
    //内部类必须是静态 - list包装类
    @AllArgsConstructor
    static class  ListWrapper {
        @XmlAnyElement  //必须使用这个注解 - 可以迭代容器元素 - 可以生效Student的@XmlRootElement(name="studentxx")注解
        //@XmlElement(name = "student") - 上面的注解可以替换成这个 - 取代了Student的@XmlRootElement(name="studentxx")注解
        List<Student> students;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

测试5 - 复杂报文解析

参考文章：https://blog.csdn.net/wn084/article/details/80853587

 

//@XmlAccessorType(XmlAccessType.FIELD)
如果你得字段是private类型且将@XmlElement放在属性上面，则必须在类上添加这个注解
1
2

 
RowCrmResult.java

@Data
@NoArgsConstructor
@AllArgsConstructor
@Builder
@Accessors(chain = true)
@XmlAccessorType(XmlAccessType.FIELD) //定义xml序列化的字段类型
@XmlRootElement(name = "outputdatas")
public class RowCrmResult {

    /**
     * 结果里面的状态码
     */
    @XmlElement(name = "resultcode", nillable = true)
    public String resultcode;

    /**
     * 结果里面的失败原因
     */
    @XmlElement(name = "reason", nillable = true)
    public String reason;


    @XmlElementWrapper(name = "results")
    @XmlElement(name = "result", nillable = true)
    public List<Result> results;


    @Data
    @NoArgsConstructor
    @AllArgsConstructor
    @Builder
    @Accessors(chain = true)
    @XmlAccessorType(XmlAccessType.FIELD)
    @XmlRootElement(name = "result")
    public static class Result {

        @XmlAttribute(name = "set_id")
        private String setId;

        @XmlAttribute(name = "rows")
        private Integer rowNum;

        @XmlAttribute(name = "cols")
        private Integer colNum;

        @XmlElement(name = "row", nillable = true)
        private List<Row> rows;

    }

    @Data
    @NoArgsConstructor
    @AllArgsConstructor
    @Builder
    @Accessors(chain = true)
    @XmlRootElement
    @XmlAccessorType(XmlAccessType.FIELD)
    public static class Row {

        @XmlAttribute(name = "rownum")
        private Integer rownum;

        @XmlElement(name = "col", nillable = true)
        private List<Col> cols;

    }

    @Data
    @NoArgsConstructor
    @AllArgsConstructor
    @Builder
    @Accessors(chain = true)
    @XmlAccessorType(XmlAccessType.FIELD)
    @XmlRootElement
    public static class Col {

        @XmlAttribute(name = "colnum")
        private String colnum;

        @XmlAttribute(name = "param_id")
        private String paramId;

        @XmlAttribute(name = "param_name")
        private String paramName;

        @XmlValue
        private String content;

    }


}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92

 

开始解析
Test.java

    /**
     * 格式化响应内容 == 去除其他没用的字符，并格式化XML
     *    使用的是hutool工具包
     * @param content
     * @return
     */
    public static String formatResponseContent(String content) {
        content = StrUtil.replace(content, ", "");
        content = StrUtil.replace(content, "]]>", "");
        content = StrUtil.subBetween(
